Mfr Part #:

FTSH-113-01-F-DV-K

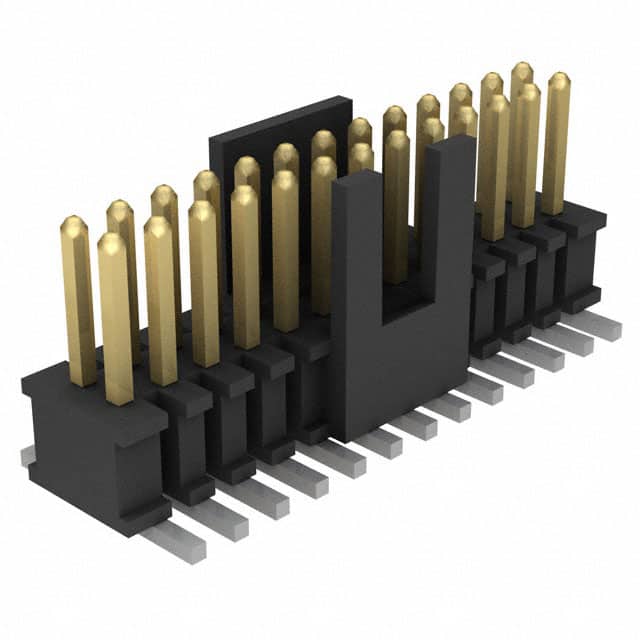

26 position, 1.27mm pitch dual row male pin header from Samtec. Surface mount, shrouded with keying shroud, rated for 3.4A per contact.

✓ Total Stock: 27 pcs

$ Price Range: $1.93 - $4.03

FTSH-113-01-F-DV-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	27 pcs On Request	27 pcs	On Request	1	On Request	On Request	10+	On Request	On Request

FTSH-113-01-F-DV-K Description

Short technical summary and product information.

The Samtec FTSH-113-01-F-DV-K is a 26 position, dual row male pin header with a 1.27mm pitch and 1.27mm row spacing. It features a shrouded housing with a keying shroud for polarization, ensuring correct mating orientation. The connector is surface mount with solder termination and is designed for board-to-board or cable applications. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish (3.0 µin thickness). The current rating is 3.4A per contact (2 pins powered) and the operating temperature range is -55°C to 125°C. This header is qualified per MIL-DTL-55302 for severe environment testing. The lead style is -01 with a 3.05mm post length, mating with Samtec FFSD series. The connector is cuttable, allowing customization of position count.

FTSH-113-01-F-DV-K Quick Information

Product Type: Header, Male Pins

Series: FTSH

Canonical Name: Samtec FTSH-113-01-F-DV-K 26 Position 1.27mm Pitch Dual Row Male Pin Header, Surface Mount, Shrouded, Keying Shroud

Subcategory: Male Pin Header

FTSH-113-01-F-DV-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

FTSH-113-01-F-DV-K Estimated Pricing

Qty	Low	High
1+	$4.03	$4.03
35+	$3.48	$3.48
105+	$3.31	$3.31
525+	$2.76	$2.76
1,015+	$2.32	$2.32
2,520+	$2.06	$2.06
5,005+	$1.93	$1.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-113-01-F-DV-K Features

26 position dual row male pin header.
1.27mm pitch with 1.27mm row spacing.
Shrouded housing with keying shroud.
Rated for 3.4A per contact.
Surface mount, tin contact finish.

FTSH-113-01-F-DV-K Applications

Board-to-board interconnects in compact designs.
Cable-to-board connections requiring polarization.
Use in harsh environments per MIL-DTL-55302.
Prototyping with cuttable connector flexibility.

FTSH-113-01-F-DV-K FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FTSH-113-01-F-DV-K have?

26 positions, all loaded.

What is the pitch of the connector?

1.27mm.

What is the current rating per contact?

3.4A per contact (2 pins powered).

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the insulator material and flammability rating?

Black liquid crystal polymer (LCP) with UL94 V-0 rating.

What is the contact finish?

Tin, 0.076µm (3.0µin) thickness.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	0.076µm (3.00µin)
Contact Length	3.05mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Features	Keying Shroud
Insulation Color	Black
Insulation Height	2.51mm
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	-01 (3.05mm Post)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C to 125°C
Pitch	1.27mm
Row Spacing	1.27mm
Shrouding	Shrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
