| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Per Contact) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

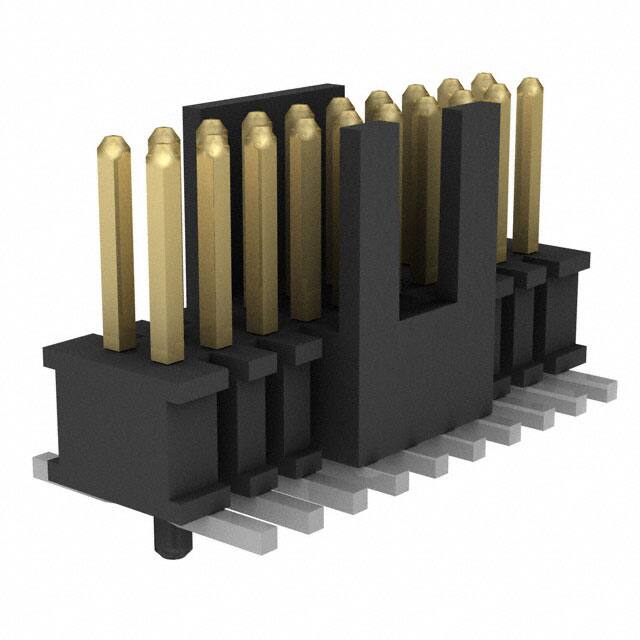

The Samtec FTSH-110-01-L-DV-K-A-P-TR is a 20-position, 1.27mm pitch shrouded header designed for surface mount soldering. It features a double vertical configuration with a keying shroud for polarization, an alignment pin for precise placement, and a pick & place pad for automated assembly. The contacts are made of phosphor bronze with 10µ" gold plating on the mating area and matte tin on the tail, ensuring reliable connections and solderability.
This connector is rated for 3.4A per pin (2 pins powered) and operates over a temperature range of -55°C to 125°C. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The contact length is 3.05mm (0.120") post, suitable for mating with Samtec FFSD cable assemblies.
The part is supplied in tape and reel packaging for high-volume assembly. It is lead-free solderable and RoHS-compliant per distributor claims. The shroud and keying feature ensure correct orientation during mating, making it suitable for board-to-board or cable-to-board applications in compact electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.44 | $3.44 |
| 100+ | $2.95 | $2.95 |
| 400+ | $2.59 | $2.59 |
| 800+ | $2.50 | $2.50 |
| 2,000+ | $2.20 | $2.20 |
| 4,800+ | $2.14 | $2.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded.
1.27mm (0.050").
3.4A per pin (2 pins powered).
Surface mount.
-55°C to 125°C.
10µ" Gold on mating area, Matte Tin on tail.
Yes, verified by datasheet.
