| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,696 pcs
|
1696 pcs | On Request | 46 | On Request | On Request | On Request | On Request | On Request | |
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

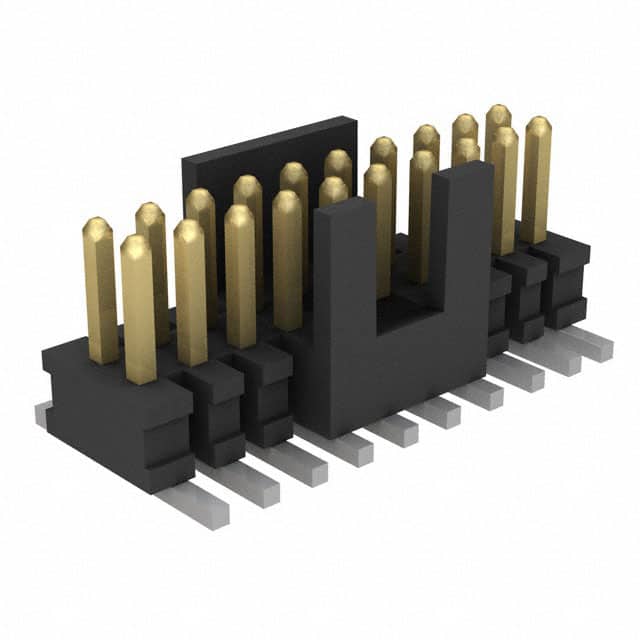

The Samtec FTSH-110-01-L-DV-K is a 20-position, 2-row, 1.27mm pitch surface mount male pin header from the FTSH series. This connector features a shrouded design with a keying shroud for secure mating with compatible FFSD cable assemblies. The contacts are made of phosphor bronze with a 10.0µin (0.25µm) tin finish on the post and a matte tin finish on the tail, ensuring reliable solderability.
This header is rated for 3.4A per contact (with 2 pins powered) and operates over a temperature range of -55°C to 125°C. The insulator is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The 3.05mm post length is designed to mate with Samtec FFSD series connectors.
The connector is surface mount and solder terminated. It is lead-free solderable and RoHS3 compliant. The keying shroud feature prevents mismating, making it suitable for board-to-board or cable-to-board applications where polarization is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.61 | $2.61 |
| 92+ | $1.98 | $1.98 |
| 276+ | $1.81 | $1.81 |
| 506+ | $1.63 | $1.63 |
| 2,024+ | $1.61 | $1.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions in 2 rows.
The pitch is 1.27mm (0.050").
It is rated for 3.4A per contact with 2 pins powered.
It is a surface mount (SMD) connector with solder termination.
It operates from -55°C to 125°C.
It is listed as RoHS3 compliant.
The contacts are phosphor bronze with a 10.0µin (0.25µm) tin finish.
