| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

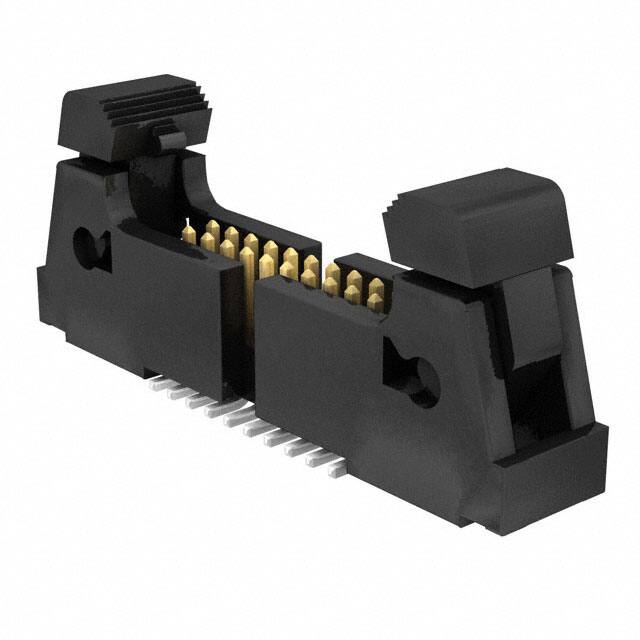

The Samtec FTSH-110-01-L-DV-EJ is a 20-position, 2-row, 1.27mm pitch surface mount header from the FTSH series. It features a shrouded design with latch lock/eject hooks for secure mating. The connector uses male square pins made of phosphor bronze with a 10 microinch gold plating on the mating post and matte tin on the solder tail. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0.
This header is designed for board-to-board or cable applications and supports a current rating of 3.4A per contact (2 pins powered). It operates over a temperature range of -55°C to +125°C. The SMT leads have a coplanarity of 0.10mm maximum. The -DV tail option indicates a double vertical configuration, and the -EJ option adds an ejector shroud.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.99 | $3.99 |
| 19+ | $3.59 | $3.59 |
| 57+ | $3.56 | $3.56 |
| 513+ | $3.08 | $3.08 |
| 1,007+ | $2.81 | $2.81 |
| 2,508+ | $2.67 | $2.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in 2 rows.
The pitch is 1.27mm (0.050 inches).
The current rating is 3.4A per contact (2 pins powered).
It is a surface mount (SMD) component.
The operating temperature range is -55°C to +125°C.
The contact finish is 10 microinch gold on the post and matte tin on the tail.
RoHS3 compliance is indicated but unverified.
