| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

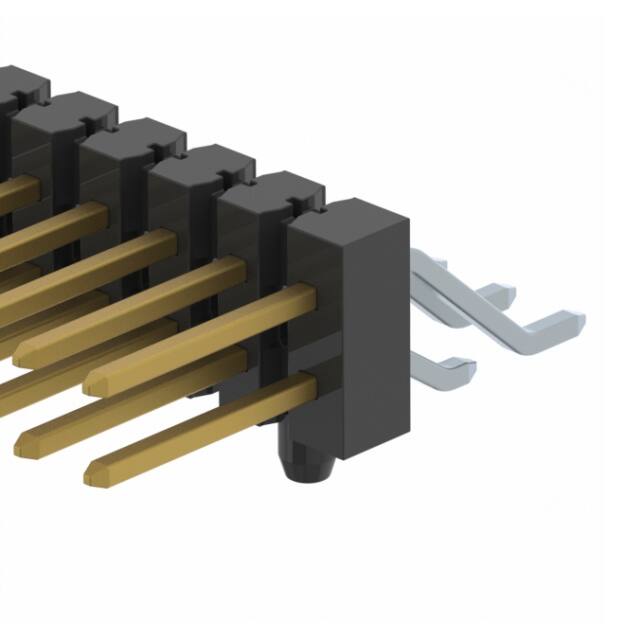

The Samtec FTSH-110-01-L-DH-C-TR is a 20-position, 2-row male pin header with a 1.27mm pitch, designed for surface mount right angle installation. This unshrouded header is part of the FTSH series and supports board-to-board or cable-to-board connections. The connector features phosphor bronze contacts with gold plating on the post and matte tin on the tail, providing reliable electrical performance and corrosion resistance.
This header is rated for 3.4A per contact (with 2 pins powered) and operates over a temperature range of -55°C to 125°C. The insulator is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The SMT lead coplanarity is 0.10mm max, ensuring consistent soldering in automated assembly. The part includes a polyimide film pick and place pad for automated placement.
Supplied in tape and reel packaging, this connector is suitable for high-density designs where space is limited. The right angle orientation allows for low-profile connections parallel to the PCB. The push-pull fastening type and unshrouded design facilitate easy mating and unmating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.78 | $3.78 |
| 50+ | $3.51 | $3.51 |
| 100+ | $3.32 | $3.32 |
| 575+ | $2.40 | $2.40 |
| 1,150+ | $2.10 | $2.10 |
| 2,300+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions (2 rows of 10).
1.27mm.
3.4A per contact (2 pins powered).
Surface Mount, Right Angle.
-55°C to 125°C.
Gold on post, Matte Tin on tail.
RoHS3 compliant (unverified).
