Mfr Part #:

FTSH-108-04-L-D

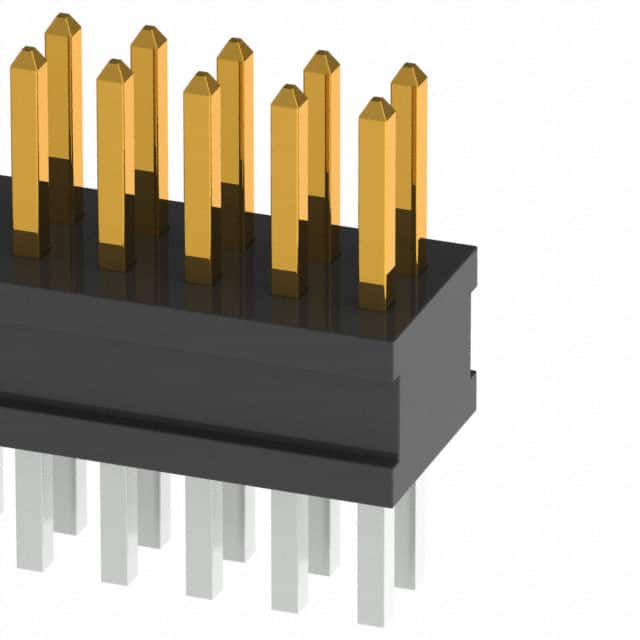

This is a 16-position, 2-row, 1.27mm pitch through-hole male pin header from the Samtec FTSH series. It features gold-plated contacts, phosphor bronze terminal material, and an operating temperature range of -55°C to +125°C.

✓ Total Stock: 753 pcs

$ Price Range: $1.38 - $2.39

FTSH-108-04-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	753 pcs On Request	753 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FTSH-108-04-L-D Description

Short technical summary and product information.

The Samtec FTSH-108-04-L-D is a 16-position, 2-row, through-hole male pin header with a 1.27mm pitch, part of the FTSH series of micro headers. Designed for board-to-board and cable-to-board applications, this unshrouded header provides reliable interconnects in high-density designs.

Key specifications include gold-plated mating contacts (10 µ" gold over 50 µ" nickel), phosphor bronze terminal material, and a current rating of 3.4A per contact (2 pins powered). The header operates across -55°C to +125°C and is rated UL94 V-0 for flammability. The insulation is black liquid crystal polymer (LCP).

This header mates with Samtec CLP and FLE (board) and FFSD and FFTP (cable) connectors. The -L plating option specifies gold flash on the post and matte tin on the tail, ensuring solderability and corrosion resistance. The through-hole mounting with solder termination provides robust mechanical attachment.

FTSH-108-04-L-D Quick Information

Product Type: Male Pin Header

Series: FTSH

Canonical Name: Samtec FTSH-108-04-L-D 16-Position 2-Row 1.27mm Pitch Through-Hole Unshrouded Male Pin Header

Subcategory: Unshrouded Header

FTSH-108-04-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

FTSH-108-04-L-D Estimated Pricing

Qty	Low	High
1+	$2.39	$2.39
57+	$1.90	$1.90
1,026+	$1.58	$1.58
2,052+	$1.48	$1.48
5,016+	$1.38	$1.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-108-04-L-D Features

16-position, 2-row through-hole header.
1.27mm pitch for high-density designs.
Gold-plated mating contacts.
Rated for 3.4A per contact.
Operating range -55°C to +125°C.

FTSH-108-04-L-D Applications

Board-to-board and cable-to-board connections.
High-density industrial interconnects.
Signal integrity in demanding environments.

FTSH-108-04-L-D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

16 positions, arranged in 2 rows of 8.

What is the pitch?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating per contact?

3.4A per contact when 2 pins are powered.

What is the mounting type?

Through-hole mounting with solder termination.

What is the contact finish?

Gold flash (10 µ") on the mating post and matte tin on the tail, over 50 µ" nickel.

What is the operating temperature range?

-55°C to +125°C.

Is the part RoHS compliant?

RoHS3 Compliant (unverified).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	0.25µm (10.0µin)
Contact Length	3.81mm (0.150")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51mm (0.099")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	04
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.339" (8.60mm)
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
