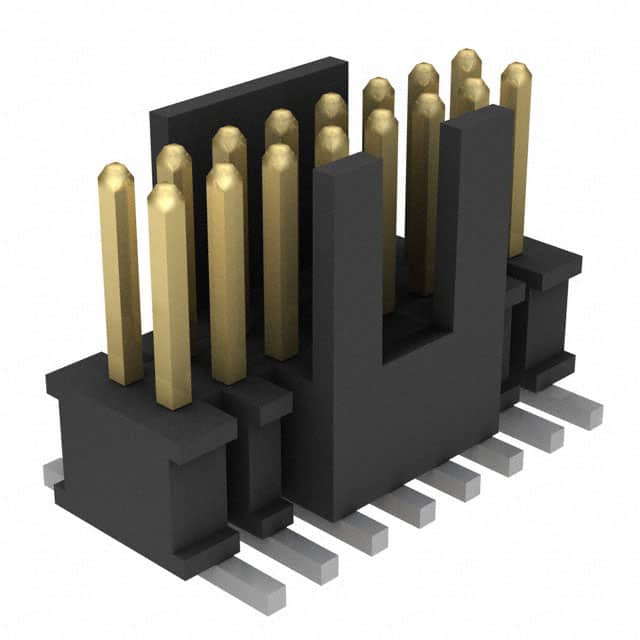

FTSH-108-01-F-DV-K-TR Samtec FTSH-108-01-F-DV-K-TR is a 16 position, 2 row, 1.27mm pitch surface mount shrouded header with male pins.
Mfr Part #:

FTSH-108-01-F-DV-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTSH-108-01-F-DV-K-TR is a 16 position, 2 row, 1.27mm pitch surface mount shrouded header with male pins.
✓ Total Stock: 3,000 pcs
$ Price Range: $1.62 - $3.26

FTSH-108-01-F-DV-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-108-01-F-DV-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-108-01-F-DV-K-TR Description

Short technical summary and product information.

The Samtec FTSH-108-01-F-DV-K-TR is a 16 position, 2 row, 1.27mm pitch surface mount header from the FTSH series. It features a shrouded design with a keying shroud for mating with FFSD series connectors. The header uses phosphor bronze contacts with a tin finish and is rated for 3.4A per contact. It operates over a temperature range of -55°C to +125°C and is housed in a black liquid crystal polymer insulator with a UL94 V-0 flammability rating. The component is supplied in tape and reel packaging with a standard quantity of 500 pieces. It is designed for board-to-board or cable applications and is lead-free solderable.

FTSH-108-01-F-DV-K-TR Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-108-01-F-DV-K-TR 16 Position 1.27mm Pitch Surface Mount Header
Subcategory: Shrouded Header

FTSH-108-01-F-DV-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

FTSH-108-01-F-DV-K-TR Estimated Pricing

Qty Low High
1+ $3.26 $3.26
25+ $3.24 $3.24
50+ $3.21 $3.21
100+ $2.76 $2.76
500+ $2.04 $2.04
1,000+ $1.87 $1.87
2,500+ $1.75 $1.75
5,000+ $1.62 $1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-108-01-F-DV-K-TR Features

  • 16 position 2 row 1.27mm pitch header.
  • Shrouded with keying shroud for secure mating.
  • Rated for 3.4A per contact current.
  • Surface mount with solder termination.
  • Operating temperature -55°C to +125°C.

FTSH-108-01-F-DV-K-TR Applications

  • Used in board-to-board interconnects.
  • Suitable for cable-to-board applications.
  • Ideal for high mating cycle applications.

FTSH-108-01-F-DV-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTSH-108-01-F-DV-K-TR have?

16 positions in 2 rows.

What is the pitch of this header?

1.27mm (0.050").

What is the current rating per contact?

3.4A per contact.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material and finish?

Phosphor bronze contacts with a tin finish.

Is the FTSH-108-01-F-DV-K-TR RoHS compliant?

RoHS3 compliant (unverified).
