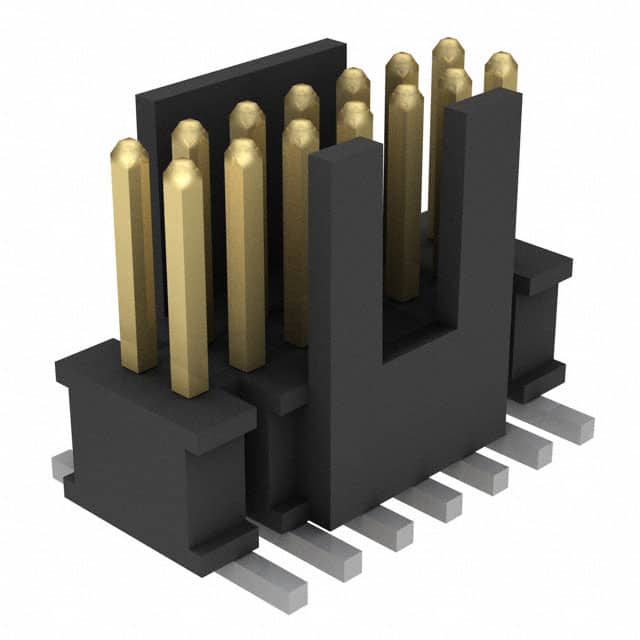

FTSH-107-01-L-DV-K-P-TR This is a 14-position, 2-row, 1.27mm pitch surface mount shrouded male pin header from Samtec's FTSH series. It features a keying shroud and a pick-and-place pad for automated assembly.
Mfr Part #:

FTSH-107-01-L-DV-K-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This is a 14-position, 2-row, 1.27mm pitch surface mount shrouded male pin header from Samtec's FTSH series. It features a keying shroud and a pick-and-place pad for automated assembly.
✓ Total Stock: 50 pcs
$ Price Range: $1.78 - $3.03

FTSH-107-01-L-DV-K-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-107-01-L-DV-K-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-107-01-L-DV-K-P-TR Description

Short technical summary and product information.

The Samtec FTSH-107-01-L-DV-K-P-TR is a 14-position, 2-row, 1.27mm pitch surface mount header from the FTSH series. It features a shrouded design with a keying shroud for polarized mating and a pick-and-place pad for efficient automated assembly. The connector uses square male pin contacts made of phosphor bronze with a 10 microinch gold finish on the post and matte tin on the tail, as indicated by the '-L' plating option.



The header is rated for 3.4A per contact and operates over a temperature range of -55°C to +125°C. The insulator is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The SMT leads have a coplanarity of 0.10mm maximum for the DV tail option. This connector is designed for board-to-board or cable applications and is supplied in tape and reel packaging.

FTSH-107-01-L-DV-K-P-TR Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH Series 14 Position 2 Row 1.27mm Pitch Surface Mount Shrouded Male Pin Header
Subcategory: Shrouded Male Pin Header

FTSH-107-01-L-DV-K-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes (lead-free solderable per datasheet)

FTSH-107-01-L-DV-K-P-TR Estimated Pricing

Qty Low High
1+ $3.03 $3.03
25+ $2.97 $2.97
50+ $2.74 $2.74
100+ $2.54 $2.54
400+ $2.54 $2.54
800+ $1.97 $1.97
4,800+ $1.78 $1.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-107-01-L-DV-K-P-TR Features

  • 14 positions in a 2-row configuration.
  • 1.27mm pitch for compact designs.
  • Shrouded header with keying shroud.
  • Gold plated phosphor bronze contacts.
  • Rated for 3.4A per contact.

FTSH-107-01-L-DV-K-P-TR Applications

  • Board-to-board stacking applications.
  • Cable-to-board interconnect systems.
  • Automated pick-and-place assembly.
  • Applications requiring polarized mating.

FTSH-107-01-L-DV-K-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 14 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 1.27mm (0.050").

What is the current rating per contact?

The current rating is 3.4A per contact.

What is the mounting type for this part?

This header uses surface mount (SMD) termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What contact finish does this part have?

The contact finish is 10 microinch Gold on the post and Matte Tin on the tail, as indicated by the '-L' plating option in the part number.

Is this component lead-free solderable?

Yes, the datasheet indicates it is lead-free solderable.
