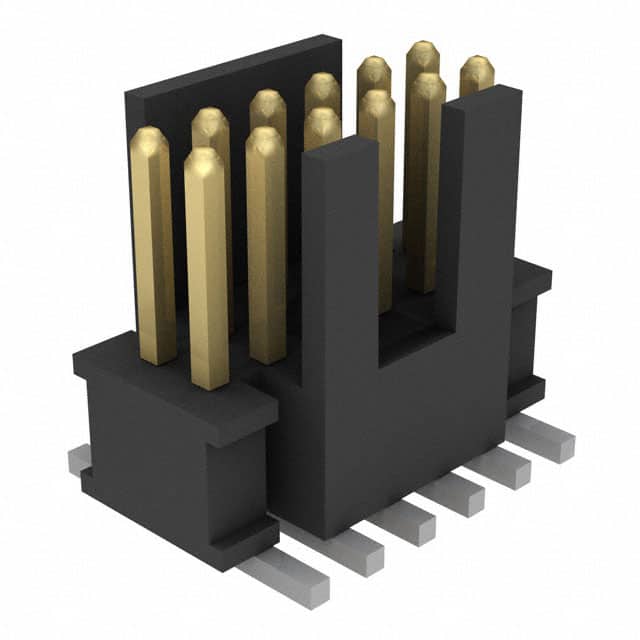

FTSH-106-01-L-DV-K Surface mount shrouded header with 12 male pin contacts, 2 rows at 1.27mm pitch. Keying shroud feature for polarization.
Mfr Part #:

FTSH-106-01-L-DV-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Surface mount shrouded header with 12 male pin contacts, 2 rows at 1.27mm pitch. Keying shroud feature for polarization.
✓ Total Stock: 12 pcs
$ Price Range: $1.56 - $2.65

FTSH-106-01-L-DV-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-106-01-L-DV-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-106-01-L-DV-K Description

Short technical summary and product information.

The Samtec FTSH-106-01-L-DV-K is a 12-position, 2-row, surface mount shrouded header from the FTSH series. It features a 1.27mm pitch and row spacing, making it suitable for high-density board-to-board or cable interconnections. The header is fully loaded with male square pins finished with 10µ" (0.25µm) gold on the post and matte tin on the tail, ensuring reliable contact.



The insulator is molded from black Liquid Crystal Polymer (LCP) rated UL94 V-0 for flammability. The connector includes a keying shroud to prevent mismating when used with Samtec FFSD series female connectors. Contact length is 3.05mm (lead style -01).



Rated at 3.4A per pin (2 pins powered), the FTSH-106-01-L-DV-K operates over a temperature range of -55°C to +125°C. It is lead-free solderable and supports surface mount processing with solder termination.

FTSH-106-01-L-DV-K Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-106-01-L-DV-K Header, Male Pins, Surface Mount, 12 Positions, 2 Rows, 1.27mm Pitch, Shrouded
Subcategory: Shrouded Header

FTSH-106-01-L-DV-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

FTSH-106-01-L-DV-K Estimated Pricing

Qty Low High
1+ $2.65 $2.65
50+ $2.51 $2.51
76+ $2.37 $2.37
1,064+ $2.07 $2.07
2,052+ $1.80 $1.80
5,016+ $1.56 $1.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-106-01-L-DV-K Features

  • 12-position surface mount shrouded header.
  • 1.27mm pitch with 2 rows.
  • Keying shroud for polarization.
  • Rated for 3.4A per pin.
  • Operating range -55°C to 125°C.

FTSH-106-01-L-DV-K Applications

  • Board-to-board interconnects in compact designs.
  • Cable-to-board connections requiring polarization.
  • High-density SMT connector applications.
  • Ideally paired with Samtec FFSD series receptacles.

FTSH-106-01-L-DV-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTSH-106-01-L-DV-K have?

It has 12 positions in a 2-row configuration with all positions loaded.

What is the pitch of this connector?

Pitch is 1.27mm (0.050") with 1.27mm row spacing.

What is the current rating?

Rated at 3.4A per contact (2 pins powered).

What is the operating temperature range?

-55°C to 125°C.

What mounting type does this use?

Surface mount with solder termination.

What is the insulation material and flammability rating?

Black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

Does this header have a keying feature?

Yes, it includes a keying shroud for polarized mating with FFSD series receptacles.
