Mfr Part #:

FTSH-105-02-L-D

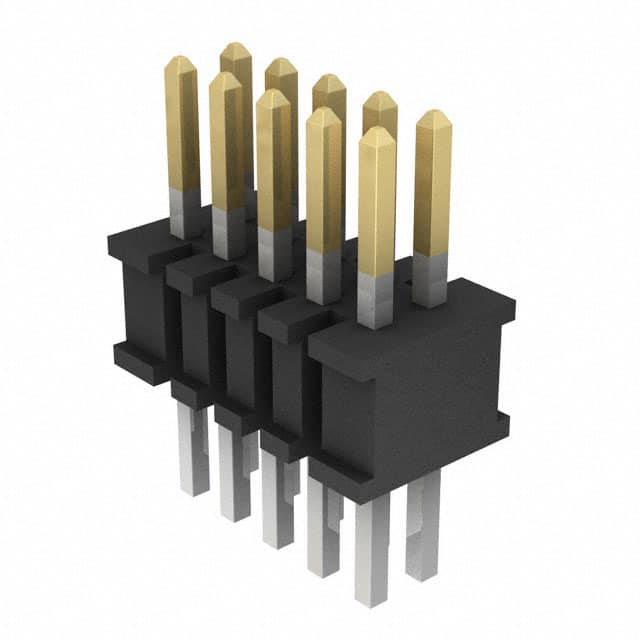

Samtec FTSH-105-02-L-D is a 10-position, 2-row, 1.27mm pitch through-hole male pin header. It features tin-plated phosphor bronze contacts and a black LCP insulator.

✓ Total Stock: 63 pcs

$ Price Range: $0.71 - $1.73

FTSH-105-02-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	63 pcs On Request	63 pcs	On Request	1	On Request	On Request	619	On Request	On Request

FTSH-105-02-L-D Description

Short technical summary and product information.

The Samtec FTSH-105-02-L-D is a 10-position, 2-row, 1.27mm pitch through-hole male pin header from the FTSH series. It is designed for board-to-board or cable applications and features an unshrouded, push-pull fastening type.

Each contact is rated for 3.4A and the header operates over a temperature range of -55°C to 125°C. Contacts are made of phosphor bronze with a tin finish (10µin thickness). The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.

The header is through-hole mounted with solder termination. It is lead-free solderable. The overall contact length is 0.265" (6.73mm) with a contact length of 1.90mm and insulation height of 2.51mm.

This header mates with Samtec CLP and FLE board-mount sockets, as well as FFSD and FFTP cable assemblies. It is suitable for various interconnect applications requiring a compact 1.27mm pitch.

FTSH-105-02-L-D Quick Information

Product Type: Header, Male Pins

Series: FTSH

Canonical Name: Samtec FTSH-105-02-L-D, 10 Position, 2 Row, 1.27mm Pitch, Through Hole, Male Pin Header

Subcategory: Unshrouded Through Hole Header

FTSH-105-02-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FTSH-105-02-L-D Estimated Pricing

Qty	Low	High
1+	$1.73	$1.73
50+	$1.50	$1.50
92+	$1.19	$1.19
1,012+	$0.99	$0.99
2,024+	$0.83	$0.83
5,060+	$0.72	$0.72
10,028+	$0.71	$0.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-105-02-L-D Features

10 positions in 2 rows.
1.27mm pitch for high density.
Through-hole mounting with solder termination.
Tin-plated phosphor bronze contacts.
Rated for 3.4A per contact.

FTSH-105-02-L-D Applications

Board-to-board interconnect applications.
Cable-to-board connections with FFSD series.
Compact electronic device designs.

FTSH-105-02-L-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FTSH-105-02-L-D have?

10 positions in 2 rows.

What is the pitch of this header?

1.27mm (0.050").

What is the current rating per contact?

3.4A per contact (2 pins powered).

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What contact material and finish are used?

Phosphor bronze contacts with 10µin tin plating.

Is this header lead-free solderable?

Yes.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	1.90mm (0.075")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51mm (0.099")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	-02 (0.075" Tail)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.265" (6.73mm)
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
