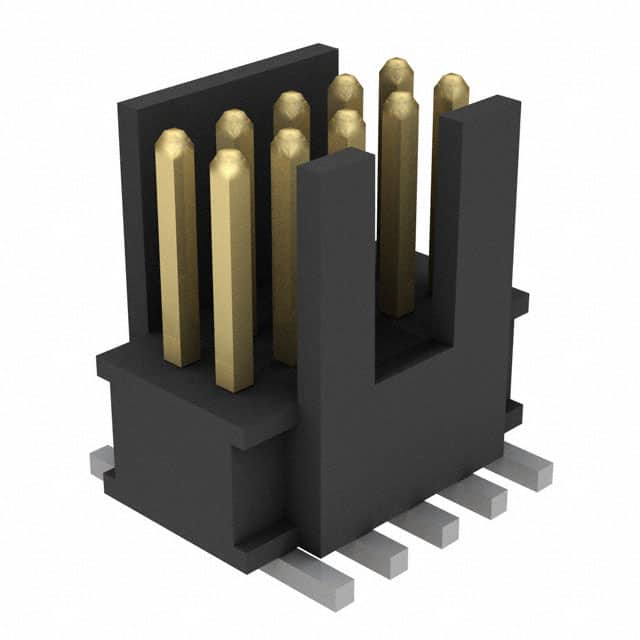

FTSH-105-01-L-DV-K-TR The Samtec FTSH-105-01-L-DV-K-TR is a 10-position (2x5) 1.27mm pitch surface mount male pin header with a keying shroud. It features gold-plated mating contacts and phosphor bronze terminals.
Mfr Part #:

FTSH-105-01-L-DV-K-TR

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec FTSH-105-01-L-DV-K-TR is a 10-position (2x5) 1.27mm pitch surface mount male pin header with a keying shroud. It features gold-plated mating contacts and phosphor bronze terminals.
✓ Total Stock: 148 pcs
$ Price Range: $1.15 - $1.80

FTSH-105-01-L-DV-K-TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-105-01-L-DV-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-105-01-L-DV-K-TR Description

Short technical summary and product information.

The FTSH-105-01-L-DV-K-TR is part of Samtec's high-reliability header strip series, designed for applications requiring high mating cycles and robust performance. This 10-position, 2-row header features a 1.27mm pitch and comes in a surface mount package with a shrouded design and integrated keying shroud for correct orientation.



Key specifications include phosphor bronze contacts with 10 µ" gold plating on the mating area and matte tin on the tail, ensuring reliable electrical connections and solderability. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0 for flammability. Electrical ratings are 3.4A per contact (with 2 pins powered) and an operating temperature range of -55°C to +125°C.



This connector supports board-to-board or cable configurations and is capable of up to 8 Gbps performance. It meets or exceeds MIL-DTL-55302 testing and is SET (Severe Environment Testing) qualified. The header is supplied in tape and reel packaging (550 units per reel) for automated assembly.

FTSH-105-01-L-DV-K-TR Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-105-01-L-DV-K-TR, 10 Position (2x5) 1.27mm Pitch SMD Male Pin Header with Keying Shroud
Subcategory: Male Pins

FTSH-105-01-L-DV-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

FTSH-105-01-L-DV-K-TR Estimated Pricing

Qty Low High
1+ $1.80 $1.80
100+ $1.57 $1.57
550+ $1.30 $1.30
1,100+ $1.23 $1.23
4,950+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-105-01-L-DV-K-TR Features

  • Surface mount 10-position 1.27mm pitch header.
  • Gold-plated mating contacts for reliability.
  • Shrouded with keying shroud for secure alignment.
  • Rated for 3.4A per contact current.
  • Operating temperature range -55°C to 125°C.

FTSH-105-01-L-DV-K-TR Applications

  • Ideal for high-density board-to-board interconnects.
  • Used in high-reliability and high-mating-cycle applications.
  • Suitable for test and measurement equipment.
  • Supports severe environment testing (SET) applications.

FTSH-105-01-L-DV-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTSH-105-01-L-DV-K-TR have?

It has 10 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 1.27mm (0.050").

What is the current rating per contact?

The current rating is 3.4A per contact (with 2 pins powered).

What is the mounting type of this connector?

It is surface mount (SMD).

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What contact finish is used on the mating area?

The mating area has 10 µ" (0.25 µm) gold plating; the tail has matte tin.

Is the insulator material flammability rated?

Yes, the insulator is black LCP rated UL94 V-0.
