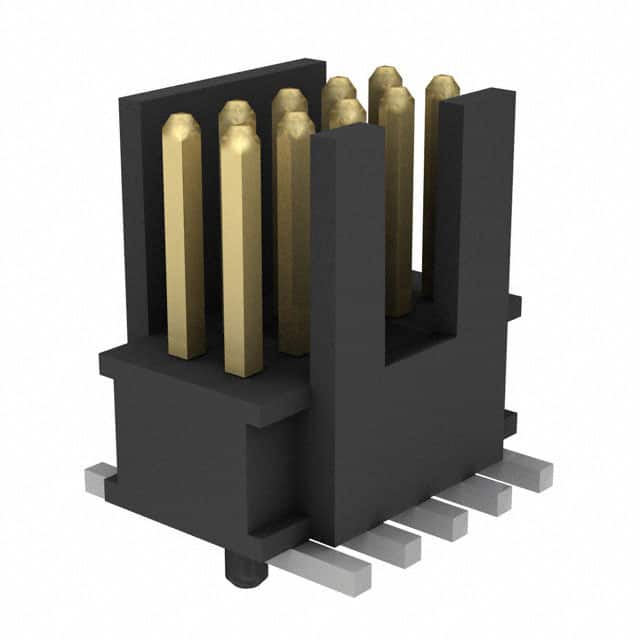

FTSH-105-01-L-DV-K-A-P The Samtec FTSH-105-01-L-DV-K-A-P is a 10-position, dual-row shrouded male pin header with 1.27mm pitch, designed for surface mount applications. It features gold-plated contacts and is suitable for board-to-board or cable connections.
Mfr Part #:

FTSH-105-01-L-DV-K-A-P

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec FTSH-105-01-L-DV-K-A-P is a 10-position, dual-row shrouded male pin header with 1.27mm pitch, designed for surface mount applications. It features gold-plated contacts and is suitable for board-to-board or cable connections.
✓ Total Stock: 44 pcs
$ Price Range: $1.14 - $2.58

FTSH-105-01-L-DV-K-A-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-105-01-L-DV-K-A-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-105-01-L-DV-K-A-P Description

Short technical summary and product information.

The Samtec FTSH-105-01-L-DV-K-A-P is a 10-position, dual-row shrouded male pin header from the FTSH series. It features a 1.27mm pitch and 1.27mm row spacing, with a surface mount (SMT) solder termination. The contacts are made of phosphor bronze with a gold plating on the mating post (10µin) and matte tin on the solder tails, ensuring reliable electrical connections. The insulator is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The housing is shrouded with a push-pull fastening mechanism and includes a keying shroud (-K), alignment pin (-A), and pick-and-place pad (-P) for automated assembly. The header is cuttable for custom lengths. It is rated for 3.4A per contact (2 pins powered) and operates over a temperature range of -55°C to +125°C. This connector is suitable for board-to-board or cable interconnect applications in compact electronic assemblies.

FTSH-105-01-L-DV-K-A-P Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-105-01-L-DV-K-A-P 10 Position Dual Row Shrouded Male Pin Header, 1.27mm Pitch, Surface Mount, Gold Contacts
Subcategory: Shrouded Header

FTSH-105-01-L-DV-K-A-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FTSH-105-01-L-DV-K-A-P Estimated Pricing

Qty Low High
1+ $2.58 $2.58
92+ $1.83 $1.83
276+ $1.62 $1.62
552+ $1.46 $1.46
2,576+ $1.38 $1.38
5,060+ $1.26 $1.26
10,028+ $1.14 $1.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-105-01-L-DV-K-A-P Features

  • 10 positions in dual row configuration.
  • 1.27mm pitch and row spacing.
  • Gold plated contacts for reliability.
  • Shrouded housing with keying and alignment.
  • Pick and place pad for automated assembly.

FTSH-105-01-L-DV-K-A-P Applications

  • Board-to-board connection in compact devices.
  • Cable-to-board interconnect solutions.
  • Prototyping and reconfigurable designs.
  • Automated SMT assembly lines.

FTSH-105-01-L-DV-K-A-P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

10 positions, all loaded.

What is the pitch of this connector?

1.27mm (0.050")

What is the current rating per contact?

3.4A per contact (2 pins powered).

What is the mounting type?

Surface mount (SMT) with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold on post, matte tin on tail (10µin gold).

What is the material flammability rating?

UL94 V-0.
