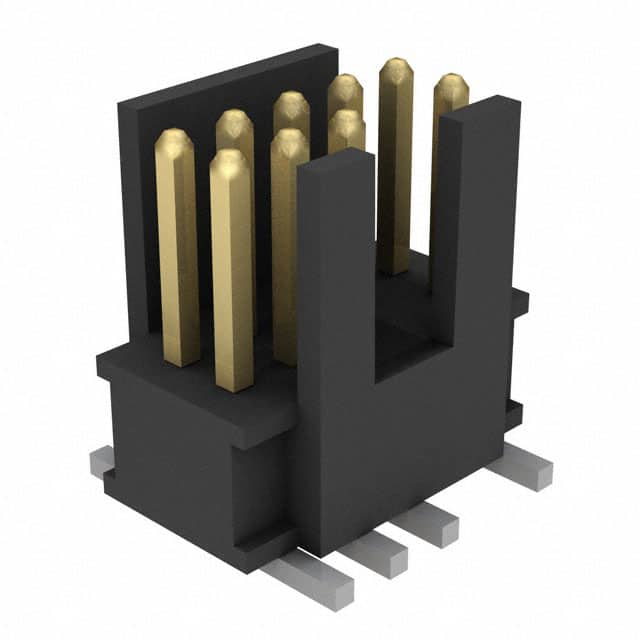

FTSH-105-01-L-DV-007-K-P-TR Shrouded surface mount header with 10 positions, 1.27mm pitch, 2 rows. Features male pins, keying shroud, and pick and place pad.
Mfr Part #:

FTSH-105-01-L-DV-007-K-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Shrouded surface mount header with 10 positions, 1.27mm pitch, 2 rows. Features male pins, keying shroud, and pick and place pad.
✓ Total Stock: 10 pcs
$ Price Range: $1.60 - $2.13

FTSH-105-01-L-DV-007-K-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-105-01-L-DV-007-K-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-105-01-L-DV-007-K-P-TR Description

Short technical summary and product information.

This Samtec FTSH series header is a 10-position, 2-row, 1.27mm (0.050") pitch surface mount connector with a shrouded design and keying shroud for mating with FFSD series. The male pin contacts are phosphor bronze with 10 µ" gold on the post and matte tin on the tail, soldered via SMT termination. The black LCP insulator meets UL94 V-0 flammability rating and supports an operating temperature range of -55°C to +125°C. Each contact is rated for 3.4A (with 2 pins powered). The part includes a pick and place pad for automated assembly and is supplied in tape and reel packaging. It supports board-to-board or cable styles with push-pull fastening. The part number configuration indicates a lead style of 3.05mm post, -L plating (10 µ" gold), double vertical shroud, polarized position (pin 7 omitted), keying shroud, pick and place pad, and tape and reel packaging.

FTSH-105-01-L-DV-007-K-P-TR Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-105-01-L-DV-007-K-P-TR - 10 Position 2 Row 1.27mm Pitch Surface Mount Shrouded Header, Male Pins, Gold Contact Finish
Subcategory: Male Pins

FTSH-105-01-L-DV-007-K-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FTSH-105-01-L-DV-007-K-P-TR Estimated Pricing

Qty Low High
1+ $2.13 $2.13
100+ $2.01 $2.01
425+ $1.79 $1.79
850+ $1.67 $1.67
2,125+ $1.62 $1.62
4,675+ $1.60 $1.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-105-01-L-DV-007-K-P-TR Features

  • 10 positions in 2 rows.
  • 1.27mm (0.050'') pitch.
  • Shrouded with keying shroud.
  • Surface mount solder termination.
  • Rated for 3.4A per contact.

FTSH-105-01-L-DV-007-K-P-TR Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connections.
  • Automated pick-and-place assembly.
  • High-density packaging designs.

FTSH-105-01-L-DV-007-K-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 10 positions (9 loaded per part number), arranged in 2 rows.

What is the pitch of this connector?

The pitch is 1.27mm (0.050") with a row spacing of 1.27mm.

What is the current rating per contact?

Each contact is rated for 3.4A (2 pins powered).

What is the mounting type?

Surface mount (SMT) with solder termination.

What contact finish is used?

The contact finish is 10 µ" gold on the post and matte tin on the tail, over 50 µ" nickel on phosphor bronze.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Does this part support automated assembly?

Yes, it features a pick and place pad and is available in tape and reel packaging for automated assembly.
