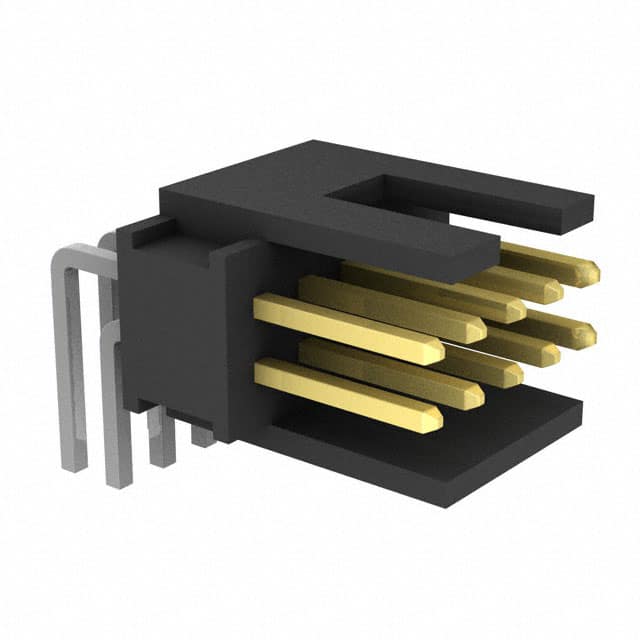

FTSH-105-01-F-D-RA-K 10 position 1.27mm pitch right angle through-hole male header from Samtec's FTSH series. Features shrouded design with keying shroud and tin-plated phosphor bronze contacts.
Mfr Part #:

FTSH-105-01-F-D-RA-K

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10 position 1.27mm pitch right angle through-hole male header from Samtec's FTSH series. Features shrouded design with keying shroud and tin-plated phosphor bronze contacts.
✓ Total Stock: 311 pcs
$ Price Range: $1.08 - $2.52

FTSH-105-01-F-D-RA-K Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request 11+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-105-01-F-D-RA-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTSH-105-01-F-D-RA-K Description

Short technical summary and product information.

The Samtec FTSH-105-01-F-D-RA-K is a 10 position (2 rows) shrouded male pin header with a pitch of 1.27mm (0.050") and row spacing of 1.27mm. It features a right angle through-hole solder termination, square phosphor bronze contacts with a 3.00µin (0.076µm) tin plating, and a black liquid crystal polymer (LCP) insulator with UL94 V-0 flammability rating. The connector includes a keying shroud and push-pull fastening. Electrical ratings include 3.4A per contact current carrying capability and support for data rates up to 8 Gbps. It operates over a -55°C to 125°C temperature range and meets MIL-DTL-55302 requirements per Samtec's SET program. Designed for board-to-board or cable interconnects requiring high mating cycle durability.

FTSH-105-01-F-D-RA-K Quick Information

Product Type: Headers, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-105-01-F-D-RA-K 10 Position 1.27mm Pitch Right Angle Header
Subcategory: Right Angle Shrouded Header

FTSH-105-01-F-D-RA-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FTSH-105-01-F-D-RA-K Estimated Pricing

Qty Low High
1+ $2.52 $2.52
50+ $2.32 $2.32
92+ $1.74 $1.74
552+ $1.58 $1.58
1,012+ $1.42 $1.42
2,024+ $1.28 $1.28
5,060+ $1.14 $1.14
10,028+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-105-01-F-D-RA-K Features

  • 10 position dual-row right angle header.
  • 1.27mm pitch for high-density layouts.
  • Rated 3.4A per contact current.
  • Supports data rates up to 8 Gbps.
  • Shrouded housing with keying shroud.

FTSH-105-01-F-D-RA-K Applications

  • Board-to-board and cable interconnects.
  • High mating cycle applications.
  • MIL-DTL-55302 qualified designs.
  • Systems requiring 8 Gbps data rate.

FTSH-105-01-F-D-RA-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

10 positions arranged in 2 rows.

What is the pitch of this connector?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating per contact?

3.4A per contact.

What is the mounting style?

Through hole, right angle orientation with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What data rate is supported?

Up to 8 Gbps.

Is this connector MIL-DTL-55302 compliant?

Yes, meets MIL-DTL-55302 requirements per Samtec SET program.
