| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

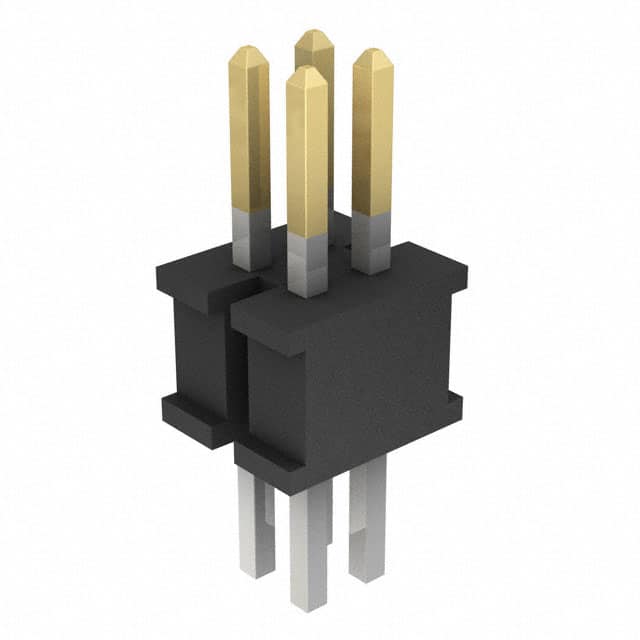

The Samtec FTSH-102-04-L-D is a high-reliability micro header strip from the FTSH series, designed for board-to-board or cable applications. It features 4 positions arranged in 2 rows with a 1.27mm pitch and 1.27mm row spacing. The connector uses through-hole mounting with solder termination and has an unshrouded push-pull fastening type.
Electrical performance includes a current rating of 3.4A per contact and a data rate capability of 8 Gbps. The operating temperature range spans -55°C to +125°C. Contacts are made of phosphor bronze with a tin finish (10.0µin/0.25µm thickness) and a square contact shape. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This header is lead-free solderable and suitable for high mating cycle applications. The cuttable connector type allows flexible length adjustment. The overall contact length is 0.339" (8.60mm) with a contact length of 3.81mm and insulation height of 2.51mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 50+ | $0.91 | $0.91 |
| 100+ | $0.74 | $0.74 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.52 | $0.52 |
| 2,000+ | $0.47 | $0.47 |
| 5,000+ | $0.40 | $0.40 |
| 10,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 1.27mm (0.050") with the same row spacing.
3.4A per contact (with 2 pins powered).
-55°C to +125°C.
Through-hole mounting with solder termination.
