Mfr Part #:

FTSH-102-02-F-D-RA

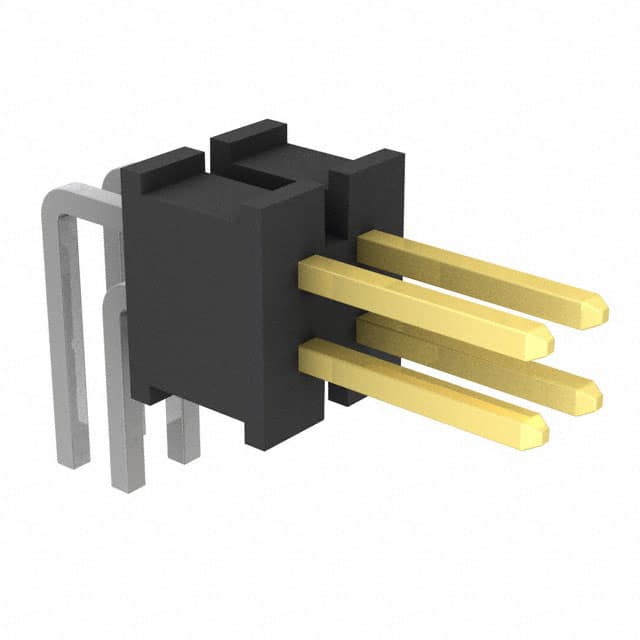

Samtec FTSH-102-02-F-D-RA is a 4-position, 1.27mm pitch, right angle through-hole unshrouded header with male pins. It is rated for 3.4A per contact and has an operating temperature range of -55°C to 125°C.

✓ Total Stock: 2 pcs

$ Price Range: $0.46 - $1.09

FTSH-102-02-F-D-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FTSH-102-02-F-D-RA Description

Short technical summary and product information.

The Samtec FTSH-102-02-F-D-RA is a high-reliability header strip from the FTSH series, designed for board-to-board or cable applications. It features a 4-position, 2-row configuration with a 1.27mm pitch and 1.27mm row spacing, making it suitable for dense interconnects.

This connector has a right-angle orientation and through-hole termination with solder contacts. The contacts are male pins made of phosphor bronze with a tin finish (3.00µin). The housing is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating and an insulation height of 3.43mm. It is unshrouded with a push-pull fastening type.

Electrically, it is rated for 3.4A per contact and operates over a temperature range of -55°C to 125°C. It is packaged in bulk and is RoHS3 compliant (unverified), REACH unaffected, and MSL 1 (unverified). The part is also available from distributors.

FTSH-102-02-F-D-RA Quick Information

Product Type: Header, Male Pins

Series: FTSH

Canonical Name: FTSH-102-02-F-D-RA – 4 Position 1.27mm Pitch Right Angle Header, Male Pins

Subcategory: Unshrouded Header

FTSH-102-02-F-D-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

FTSH-102-02-F-D-RA Estimated Pricing

Qty	Low	High
1+	$1.09	$1.09
50+	$0.89	$0.89
100+	$0.84	$0.84
1,000+	$0.71	$0.71
2,000+	$0.62	$0.62
5,000+	$0.52	$0.52
10,000+	$0.46	$0.46
25,000+	$0.46	$0.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-102-02-F-D-RA Features

4 position, 2 row, 1.27mm pitch right angle header.
Through-hole termination with solder contacts.
Unshrouded with push-pull fastening.
Rated 3.4A per contact.
Operating temperature -55°C to 125°C.

FTSH-102-02-F-D-RA Applications

Used in board-to-board interconnects.
Suitable for cable-to-board connections.
Ideal for dense packaging designs.
Common in consumer electronics and industrial control.
Compatible with Samtec's FTSH series receptacles.

FTSH-102-02-F-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FTSH-102-02-F-D-RA have?

4 positions.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating per contact?

3.4A per contact.

What is the mounting type of the FTSH-102-02-F-D-RA?

Through hole, right angle.

How many rows does this header have?

2 rows.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze with tin finish (3.00µin).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	3.00µin (0.076µm)
Contact Length	1.90mm (0.075")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	3.43mm (0.135")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
