| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

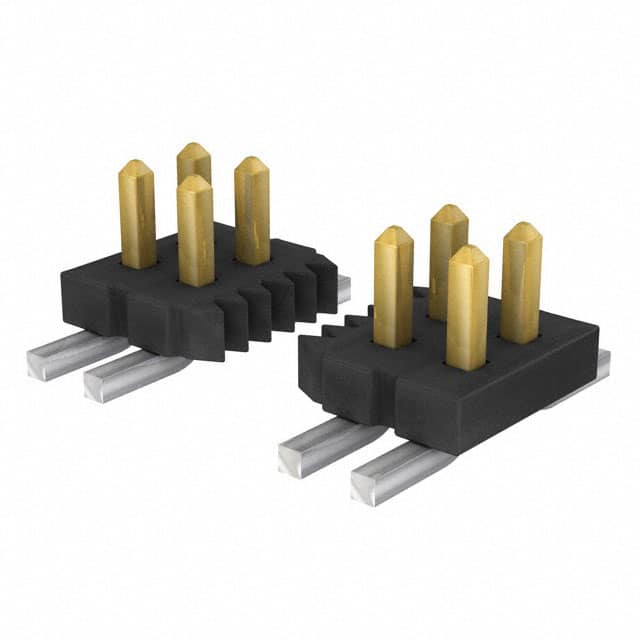

The Samtec FTS-125-03-L-DV is a 50-position, 2-row unshrouded header designed for surface mount applications. With a 1.27mm pitch and row spacing, it supports high-density interconnections and can be cut to length for flexible board-to-board or cable connections.
The electrical rating is 3.4A per contact. Contacts are made of phosphor bronze with a 10.0µin tin finish. The black liquid crystal polymer (LCP) insulator has a UL94 V-0 flammability rating. Operating temperature ranges from -55°C to 125°C.
The header features a push-pull fastening mechanism and is terminated by soldering. The contact length is 1.65mm and insulation height is 0.86mm. It is listed as RoHS3 compliant, MSL 1, and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.84 | $6.84 |
| 10+ | $6.22 | $6.22 |
| 18+ | $5.80 | $5.80 |
| 54+ | $5.24 | $5.24 |
| 108+ | $4.78 | $4.78 |
| 252+ | $4.60 | $4.60 |
| 504+ | $3.86 | $3.86 |
| 1,008+ | $3.18 | $3.18 |
| 2,016+ | $2.88 | $2.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
1.27mm (0.050 inches).
3.4A per contact.
Surface mount.
-55°C to 125°C.
Phosphor bronze contacts with 10.0µin tin finish.
2 rows.
