Mfr Part #:

FTS-110-01-L-DV-P-TR

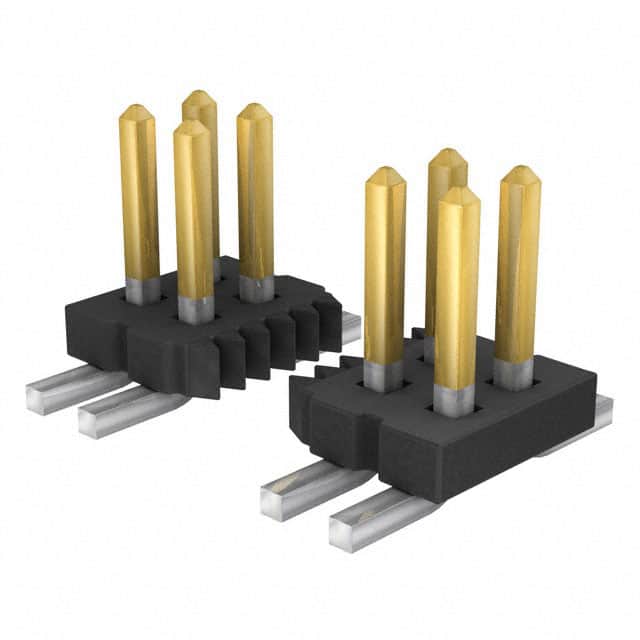

Samtec FTS series 20 position 2 row 1.27mm pitch surface mount male pin header with gold plated contacts. Rated for 3.4A per contact and -55°C to 125°C operating temperature.

✓ Total Stock: 110 pcs

$ Price Range: $1.15 - $2.17

FTS-110-01-L-DV-P-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	110 pcs On Request	110 pcs	On Request	10	On Request	On Request	On Request	On Request	On Request

FTS-110-01-L-DV-P-TR Description

Short technical summary and product information.

The Samtec FTS-110-01-L-DV-P-TR is a 20 position, 2 row, 1.27mm (0.050") pitch surface mount male pin header from the FTS series. It features unshrouded square pins with a contact length of 3.05mm (0.120") and a gold finish (10µ" over 50µ" nickel) on the post with matte tin on the tail. The insulator is black liquid crystal polymer (LCP) with a flammability rating of UL94 V-0.

This connector is rated for 3.4A per contact (2 pins powered) and operates over a temperature range of -55°C to 125°C. It is designed for board-to-board or cable applications and mates with Samtec CLP, FLE, and FFSD series. The header includes a pick and place pad for automated assembly and is supplied in tape and reel packaging.

The FTS-110-01-L-DV-P-TR is lead-free solderable and has an MSL of Level 1 (unlimited). It is RoHS3 compliant and REACH unaffected. The surface mount termination with push-pull fastening makes it suitable for compact, high-density interconnects.

FTS-110-01-L-DV-P-TR Quick Information

Product Type: Header, Male Pins

Series: FTS

Canonical Name: Samtec FTS Series 20 Position 2 Row 1.27mm Pitch Surface Mount Male Pin Header

Subcategory: Male Pins

FTS-110-01-L-DV-P-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable: Yes

FTS-110-01-L-DV-P-TR Estimated Pricing

Qty	Low	High
1+	$2.17	$2.17
100+	$1.73	$1.73
850+	$1.33	$1.33
1,700+	$1.32	$1.32
4,250+	$1.17	$1.17
9,350+	$1.15	$1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTS-110-01-L-DV-P-TR Features

20 position 2 row 1.27mm pitch header.
Gold plated phosphor bronze contacts.
Surface mount with pick and place pad.
Rated for 3.4A per contact.
-55°C to 125°C operating temperature.

FTS-110-01-L-DV-P-TR Applications

Board-to-board interconnect applications.
Cable mating with FFSD series.
High-density SMT connector designs.
Automated pick and place assembly.

FTS-110-01-L-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FTS-110-01-L-DV-P-TR have?

20 positions, arranged in 2 rows.

What is the pitch of this header?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating?

3.4A per contact (2 pins powered).

What is the operating temperature range?

-55°C to 125°C.

What mounting type does this connector use?

Surface mount with solder termination.

What is the contact finish?

Gold, 10µin (0.25µm) on post, matte tin on tail.

Is this part RoHS compliant?

RoHS3 Compliant (unverified).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Gold, 10µin (0.25µm)
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.05mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.86mm (0.034")
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	1.27mm (0.050")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
