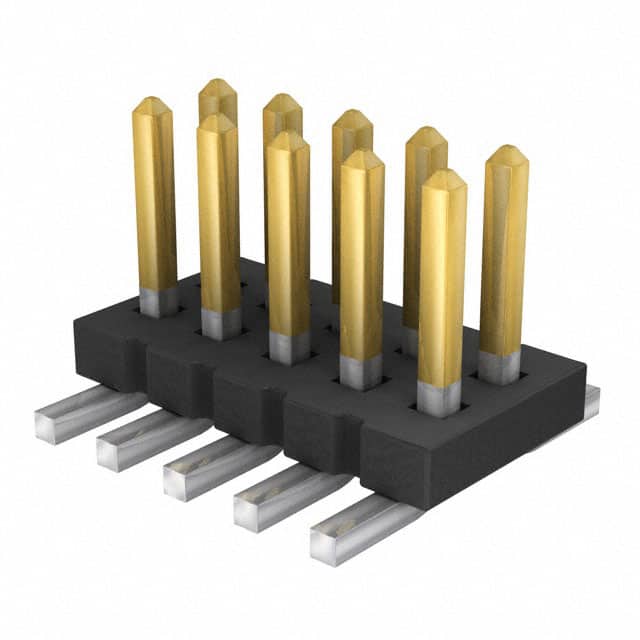

FTS-105-01-L-DV-P-TR Samtec FTS series micro low profile header strip with 10 positions in 2 rows on a 1.27mm pitch. Surface mount termination with gold flash on post and matte tin on tail contacts.
Mfr Part #:

FTS-105-01-L-DV-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTS series micro low profile header strip with 10 positions in 2 rows on a 1.27mm pitch. Surface mount termination with gold flash on post and matte tin on tail contacts.
✓ Total Stock: 2 pcs
$ Price Range: $0.64 - $1.16

FTS-105-01-L-DV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTS-105-01-L-DV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Prop 65
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTS-105-01-L-DV-P-TR Description

Short technical summary and product information.

The Samtec FTS-105-01-L-DV-P-TR is a micro low profile header strip from the FTS series. It features 10 positions arranged in 2 rows on a 1.27mm (0.050") pitch, making it suitable for high-density board-to-board or cable-to-board interconnects. The connector uses male pin contacts made of phosphor bronze with a gold flash on the post and matte tin on the tail, ensuring reliable electrical performance and solderability.



This header is designed for surface mount soldering and includes a pick and place pad for automated assembly. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to +125°C. The current rating is 3.4A per pin when two pins are powered simultaneously.



The connector is unshrouded with a push-pull fastening type and has an insulation height of 0.86mm and a post height of 3.05mm. It is supplied in tape and reel packaging with 600 parts per reel, suitable for high-volume manufacturing.

FTS-105-01-L-DV-P-TR Quick Information

Product Type: Header, Male Pin
Series: FTS
Canonical Name: Samtec FTS Series Micro Low Profile Header Strip, 10 Position, 2 Row, 1.27mm Pitch, Surface Mount, Male Pin
Subcategory: Male Pin

FTS-105-01-L-DV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

FTS-105-01-L-DV-P-TR Estimated Pricing

Qty Low High
1+ $1.16 $1.16
100+ $1.12 $1.12
600+ $0.98 $0.98
1,200+ $0.90 $0.90
2,400+ $0.77 $0.77
4,800+ $0.65 $0.65
9,600+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTS-105-01-L-DV-P-TR Features

  • 10 positions in 2 rows on 1.27mm pitch.
  • Surface mount termination with solder tails.
  • Gold flash on post, matte tin on tail contacts.
  • Rated for 3.4A per pin (2 pins powered).
  • Pick and place pad for automated assembly.

FTS-105-01-L-DV-P-TR Applications

  • Board-to-board interconnects in compact electronics.
  • Cable-to-board connections in micro systems.
  • High-density packaging requiring low profile headers.
  • Automated surface mount assembly processes.

FTS-105-01-L-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTS-105-01-L-DV-P-TR have?

It has 10 positions in 2 rows.

What is the pitch of this header?

The pitch is 1.27mm (0.050").

What is the current rating?

3.4A per pin when 2 pins are powered simultaneously.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold flash on post, matte tin on tail.

Is this part RoHS compliant?

Yes, RoHS3 compliant.
