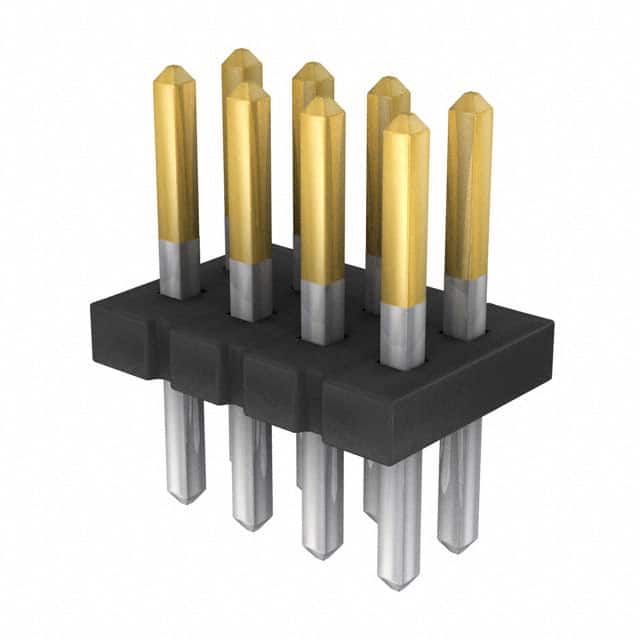

FTS-104-01-L-D Samtec FTS-104-01-L-D is an 8 position, 2 row, 1.27mm pitch unshrouded male pin header. It features through hole mounting, solder termination, and gold plated phosphor bronze contacts.
Mfr Part #:

FTS-104-01-L-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTS-104-01-L-D is an 8 position, 2 row, 1.27mm pitch unshrouded male pin header. It features through hole mounting, solder termination, and gold plated phosphor bronze contacts.
✓ Total Stock: 54 pcs
$ Price Range: $0.51 - $1.11

FTS-104-01-L-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTS-104-01-L-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

FTS-104-01-L-D Description

Short technical summary and product information.

The Samtec FTS-104-01-L-D is a micro low profile terminal strip from the FTS series. It is an unshrouded male pin header with 8 positions arranged in 2 rows at a 1.27mm (0.050") pitch. The connector uses a push-pull fastening type and is designed for board-to-board or cable applications.



This header features a 3.05mm (0.120") mating contact length and an overall contact length of 6.20mm (0.244"). The insulation height is 0.86mm (0.034"). Contacts are made of phosphor bronze with a 10 µ" (0.25 µm) gold finish on the post and matte tin on the tail. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



Electrical rating is 3.4A per contact with 2 pins powered. The operating temperature range is -55°C to +125°C. The connector is through hole mounted with solder termination and is lead-free solderable. The cuttable design allows for customization of the number of positions.

FTS-104-01-L-D Quick Information

Product Type: Header, Male Pins
Series: FTS
Canonical Name: Samtec FTS Series 8 Position 2 Row 1.27mm Pitch Unshrouded Male Pin Header, Through Hole, Solder Termination
Subcategory: Unshrouded Header

FTS-104-01-L-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FTS-104-01-L-D Estimated Pricing

Qty Low High
1+ $1.11 $1.11
100+ $1.07 $1.07
1,000+ $0.94 $0.94
2,000+ $0.79 $0.79
5,000+ $0.64 $0.64
10,000+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTS-104-01-L-D Features

  • 8 positions in 2 rows at 1.27mm pitch.
  • Unshrouded male pin header design.
  • Gold plated phosphor bronze contacts.
  • Through hole mounting with solder termination.
  • Rated for 3.4A per contact.

FTS-104-01-L-D Applications

  • Board-to-board interconnection applications.
  • Cable-to-board connection systems.
  • Low profile micro connector designs.
  • Prototyping with cuttable header strips.

FTS-104-01-L-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTS-104-01-L-D have?

The FTS-104-01-L-D has 8 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 1.27mm (0.050") with a row spacing of 1.27mm (0.050").

What is the current rating of the FTS-104-01-L-D?

The current rating is 3.4A per contact with 2 pins powered.

What is the mounting type for this connector?

The mounting type is through hole with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish on the FTS-104-01-L-D?

The contact finish is 10 µ" (0.25 µm) Gold on the post and Matte Tin on the tail.

What is the insulation material and flammability rating?

The insulation material is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
