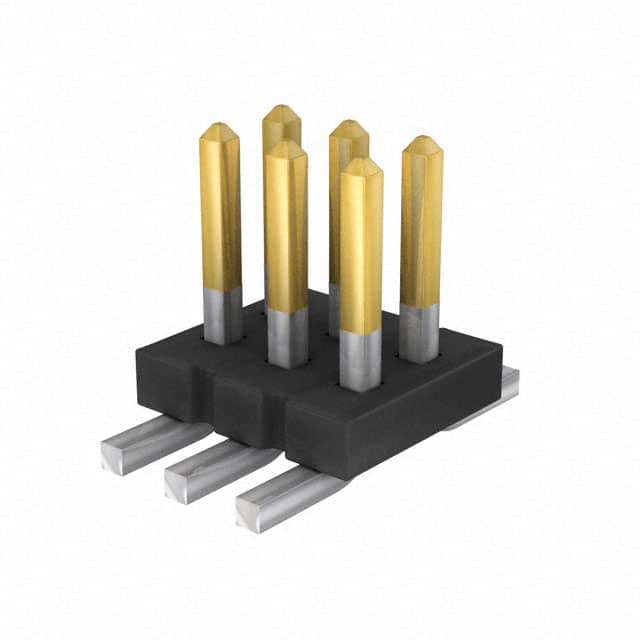

FTS-103-01-L-DV-TR The Samtec FTS-103-01-L-DV-TR is a 6-position, 2-row, 1.27mm pitch surface mount header with male pins. It features gold-plated contacts, a current rating of 3.4A per pin, and an operating temperature range of -55°C to 125°C.
Mfr Part #:

FTS-103-01-L-DV-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec FTS-103-01-L-DV-TR is a 6-position, 2-row, 1.27mm pitch surface mount header with male pins. It features gold-plated contacts, a current rating of 3.4A per pin, and an operating temperature range of -55°C to 125°C.
✓ Total Stock: 50 pcs
$ Price Range: $0.61 - $1.10

FTS-103-01-L-DV-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTS-103-01-L-DV-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTS-103-01-L-DV-TR Description

Short technical summary and product information.

The Samtec FTS-103-01-L-DV-TR is a 6-position, 2-row, 1.27mm pitch surface mount header from the FTS series. It features male pins with a square contact shape and gold plating (10µ" on post, matte tin on tail) over phosphor bronze contacts. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



This unshrouded header is designed for board-to-board or cable applications, mating with Samtec CLP, FLE, or FFSD series connectors. It has a push-pull fastening type and a current rating of 3.4A per contact (with 2 pins powered). The operating temperature range is -55°C to 125°C.



The component is surface mount with solder termination and is supplied in tape and reel packaging. It is lead-free solderable and has a maximum SMT lead coplanarity of 0.004" (0.10mm). The contact length (post) is 3.05mm (0.120"), suitable for mating with FFSD series cable assemblies.

FTS-103-01-L-DV-TR Quick Information

Product Type: Header, Male Pins
Series: FTS
Canonical Name: Samtec FTS-103-01-L-DV-TR 6 Position 1.27mm Pitch Surface Mount Header
Subcategory: Unshrouded Surface Mount Header

FTS-103-01-L-DV-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

FTS-103-01-L-DV-TR Estimated Pricing

Qty Low High
1+ $1.10 $1.10
100+ $1.06 $1.06
775+ $0.93 $0.93
1,550+ $0.85 $0.85
4,650+ $0.80 $0.80
9,300+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTS-103-01-L-DV-TR Features

  • 6-position, 2-row, 1.27mm pitch header.
  • Gold-plated phosphor bronze contacts.
  • Surface mount with solder termination.
  • Rated for 3.4A per contact.
  • Operating temperature -55°C to 125°C.

FTS-103-01-L-DV-TR Applications

  • Board-to-board interconnects in compact devices.
  • Cable-to-board connections with FFSD series.
  • Low-profile applications requiring high density.
  • Industrial and commercial electronic systems.

FTS-103-01-L-DV-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTS-103-01-L-DV-TR have?

It has 6 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 1.27mm (0.050").

What is the current rating per contact?

The current rating is 3.4A per contact (with 2 pins powered).

What is the mounting type?

It is surface mount (SMD) with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact finish?

The contact finish is 10µ" gold on the post and matte tin on the tail.

What is the contact material?

The contact material is phosphor bronze.
