| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Method |

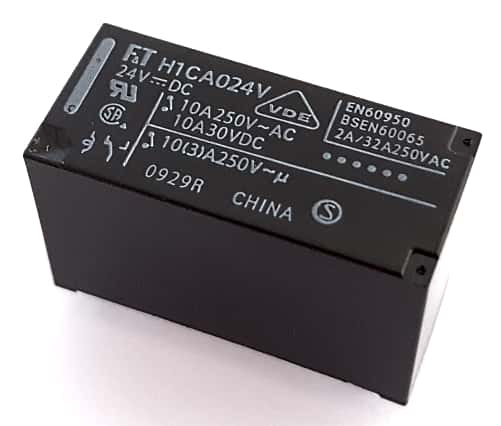

This Fujitsu FTR-H1CA024V is a Single Pole Double Throw (SPDT) general purpose power relay designed for reliable performance in various applications. It operates with a 24VDC coil voltage and offers a robust contact rating of 10A at 250VAC or 30VDC.
The relay is built for durability, with a maximum switching rating of 2500 VA or 300 W. It supports AC switching voltages up to 400VAC and DC switching voltages up to 300VDC, with a maximum switching current of 10.0A. The coil resistance is 1100 Ohms, and it requires a must-operate voltage of 16.8VDC and a must-release voltage of 2.4VDC.
Designed for PCB mounting, this relay features PC pin termination and a solderable lead type. Its compact dimensions are 28 x 12.8 x 16.5 mm. The operating temperature range is from -40°C to 75°C, making it suitable for demanding environments. The relay is RoHS3 compliant and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact current rating is 10 A.
The maximum AC voltage rating is 250 VAC.
The operating temperature range is -40 to 75°C.
It is designed for PCB mounting with through-hole leads.
