| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
421 pcs
|
421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Contact Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel |

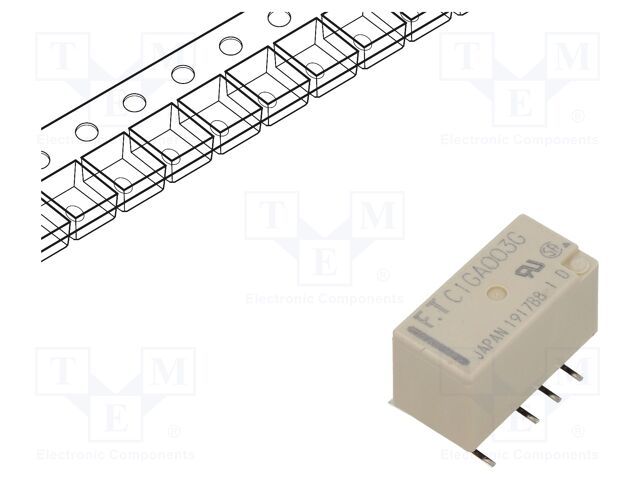

The FCL Components FTR-C1GA003G-B05 is a miniature electromagnetic relay with a Double Pole Double Throw (DPDT) contact configuration. It operates with a nominal coil voltage of 3VDC and has a maximum contact current rating of 2A. The relay is suitable for switching up to 250V AC or 220V DC.
Designed for surface mount technology (SMT), this relay offers a terminal pitch of 2.54mm and has body dimensions of 15.2x7.7x9.7mm. The contact material is AgPd/Au with a thickness of 0.2μm, and the typical contact resistance is 0.15Ω. The coil resistance is 32.1Ω, with a power consumption of 280mW. The operating temperature range is -40°C to 85°C.
This relay is part of the FTR-C1 series and is supplied on a reel with a standard package quantity of 500 pieces. Its specifications make it suitable for various signal switching applications where reliable DPDT functionality is required in a compact SMT package.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the FTR-C1GA003G-B05 relay is 3VDC.
This electromagnetic relay has a DPDT (Double Pole Double Throw) contact configuration.
The AC contact rating is 0.3A at 125V AC.
The DC contact rating is 1A at 30V DC.
The typical contact resistance is 0.15Ω.
The operating temperature range is -40°C to 85°C.
The body dimensions are 15.2x7.7x9.7mm.
