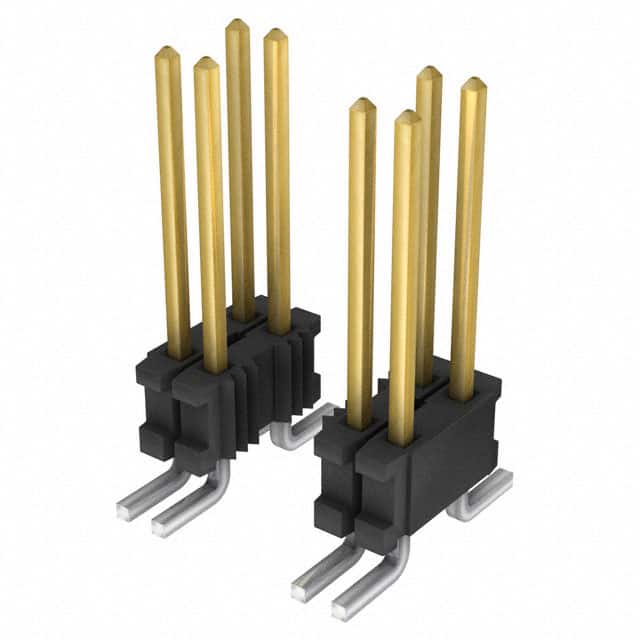

FTR-115-54-S-D-P Samtec FTR-115-54-S-D-P is a 30-position, 2-row surface mount board-to-board header with 1.27mm pitch. It features unshrouded male pins with tin plating and phosphor bronze contacts.
Mfr Part #:

FTR-115-54-S-D-P

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTR-115-54-S-D-P is a 30-position, 2-row surface mount board-to-board header with 1.27mm pitch. It features unshrouded male pins with tin plating and phosphor bronze contacts.
✓ Total Stock: 95 pcs
$ Price Range: $4.77 - $7.81

FTR-115-54-S-D-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request 619 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTR-115-54-S-D-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

FTR-115-54-S-D-P Description

Short technical summary and product information.

The FTR-115-54-S-D-P is a 30-position board-to-board header from Samtec's FTR series. It has 30 positions in 2 rows at 1.27mm pitch and 2.54mm row spacing. Mounting type is surface mount with solder termination. Contact material is phosphor bronze with tin finish (30µin). Insulation is black Liquid Crystal Polymer (LCP) rated UL94 V-0. The connector is unshrouded with push-pull fastening and includes a plastic pick and place pad for automated assembly. Electrical ratings: 3.8A per pin (with 2 pins powered) and 290VAC. Operating temperature range for the tin finish is -55°C to +105°C. The connector is lead-free solderable and designed for board-to-board applications, mating with Samtec's RSM series.

FTR-115-54-S-D-P Quick Information

Product Type: Board-to-Board Header
Series: FTR
Canonical Name: Samtec FTR-115-54-S-D-P Header, Male Pins, 30 Positions, 2 Rows, 1.27mm Pitch, Surface Mount
Subcategory: Unshrouded Header

FTR-115-54-S-D-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FTR-115-54-S-D-P Estimated Pricing

Qty Low High
1+ $7.81 $7.81
10+ $6.81 $6.81
29+ $6.59 $6.59
58+ $6.44 $6.44
116+ $6.23 $6.23
522+ $5.22 $5.22
1,015+ $5.19 $5.19
2,001+ $4.77 $4.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTR-115-54-S-D-P Features

  • 30 positions in 2 rows at 1.27mm pitch.
  • Surface mount termination with tin plated contacts.
  • Unshrouded header with push-pull fastening.
  • Rated for 3.8A per pin and 290VAC.
  • Operating temperature range -55°C to +105°C for tin finish.

FTR-115-54-S-D-P Applications

  • Ideal for board-to-board interconnects in compact electronics.
  • Used in industrial control and automation systems.
  • Suitable for applications requiring high pin density.
  • Compatible with Samtec RSM series for reliable connections.

FTR-115-54-S-D-P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTR-115-54-S-D-P have?

30 positions arranged in 2 rows.

What is the pitch of the FTR-115-54-S-D-P?

1.27mm (0.050") with row spacing of 2.54mm.

What is the current rating of the FTR-115-54-S-D-P?

3.8A per pin when 2 pins are powered.

What is the voltage rating of the FTR-115-54-S-D-P?

290 VAC maximum.

What is the mounting type of the FTR-115-54-S-D-P?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to +105°C for tin finish.

What is the flammability rating of the insulator?

UL94 V-0.
