| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

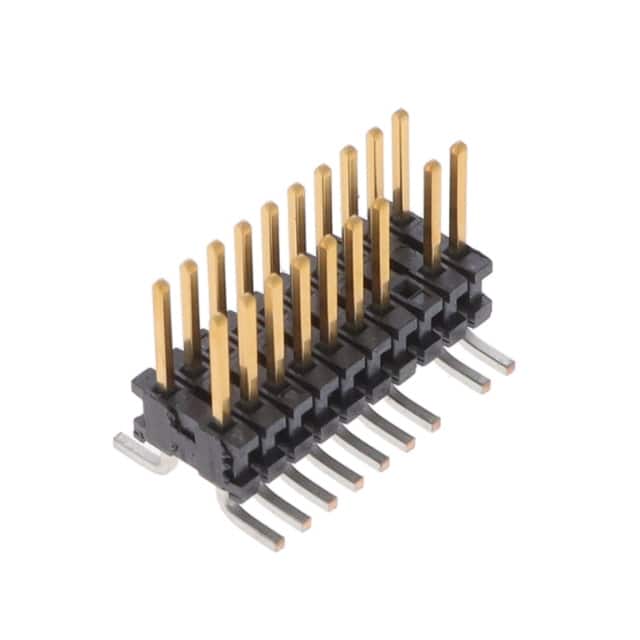

The Samtec FTR-110-51-L-D-06-P-TR is a 20-position unshrouded board-to-board header with male pins. It features 2 rows with a 1.27mm pitch and 2.54mm row spacing, making it suitable for high-density interconnects. The connector uses phosphor bronze contacts with 10µ" gold on the post and matte tin on the tail, ensuring reliable conductivity and solderability.
Electrically, each pin is rated for 3.8 A when 2 pins are powered, with a voltage rating of 290 VAC. The operating temperature range is -55°C to 125°C when using gold plating, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The contact length is 4.83mm, and a plastic pick and place pad is included for automated assembly.
Mounting is surface mount with solder termination. The part is lead-free solderable and offered in tape and reel packaging. The SMT lead coplanarity is specified at 0.10mm maximum for reliable placement. This design mates with Samtec RSM, SMS, and SLM series connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.66 | $3.66 |
| 25+ | $3.57 | $3.57 |
| 50+ | $3.31 | $3.31 |
| 100+ | $2.89 | $2.89 |
| 175+ | $2.89 | $2.89 |
| 350+ | $2.65 | $2.65 |
| 2,450+ | $2.27 | $2.27 |
| 4,900+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions total, with 19 positions loaded (one position unloaded).
The pitch is 1.27 mm (0.050") with a row spacing of 2.54 mm (0.100").
3.8 A per pin when 2 pins are powered (datasheet value). Note: existing database states 3.1 A per contact.
290 VAC.
Surface mount with solder termination.
10 µ" (0.25 µm) gold on post and matte tin on tail, over 50 µ" nickel.
-55°C to 125°C (with gold plating).
