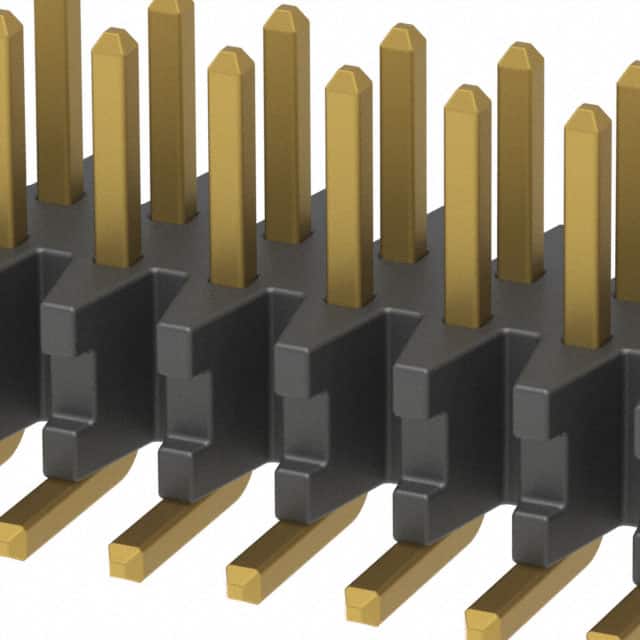

The Samtec FTMH-115-02-G-DV-P is a 30-position, 2-row unshrouded header from the FTMH series of micro terminal strips. It features a 1.00mm pitch and row spacing, making it suitable for high-density board-to-board interconnections. The connector uses phosphor bronze contacts with 10 µ" (0.25 µm) gold plating on the post and matte tin on the tail, ensuring reliable signal integrity and corrosion resistance.
This header is rated for 3.1 A per pin (with 2 pins powered) and has a voltage rating of 270 VAC / 302 VDC. It operates over a temperature range of -55°C to +125°C. The insulator is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
The component is surface mount with solder termination and includes a plastic pick-and-place pad for automated assembly. It is available in tape and reel packaging. The unshrouded design mates with Samtec MLE series receptacles.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.33 | $8.33 |
| 25+ | $7.73 | $7.73 |
| 38+ | $7.33 | $7.33 |
| 114+ | $6.50 | $6.50 |
| 266+ | $6.18 | $6.18 |
| 532+ | $5.58 | $5.58 |
| 1,026+ | $5.43 | $5.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 30 positions arranged in 2 rows.
The pitch is 1.00 mm (0.039").
The current rating is 3.1 A per pin with 2 pins powered.
The voltage rating is 270 VAC / 302 VDC.
Surface mount (SMD) with solder termination.
-55°C to +125°C.
RoHS3 compliance is claimed but unverified. The datasheet confirms lead-free solderability.
