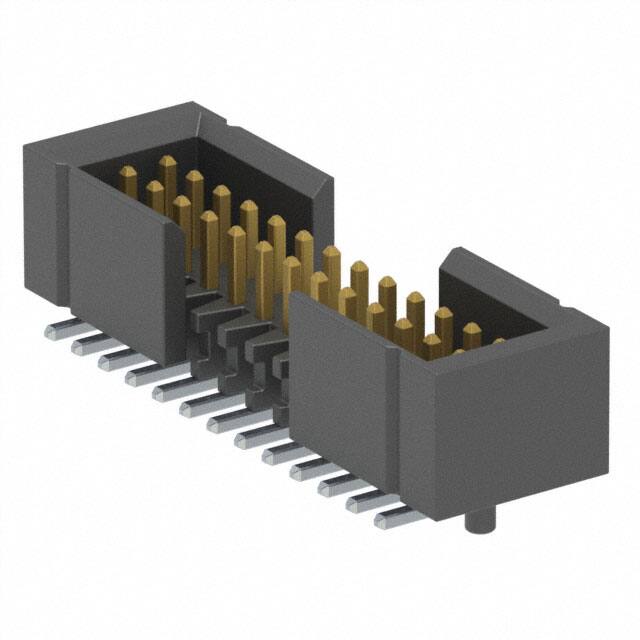

FTMH-113-03-F-DV-ES-A-P-TR The FTMH-113-03-F-DV-ES-A-P-TR is a 26 position, 1mm pitch surface mount header from Samtec. It features male pins with gold flash contact finish and a board-to-board design.
Mfr Part #:

FTMH-113-03-F-DV-ES-A-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The FTMH-113-03-F-DV-ES-A-P-TR is a 26 position, 1mm pitch surface mount header from Samtec. It features male pins with gold flash contact finish and a board-to-board design.
✓ Total Stock: 93 pcs
$ Price Range: $4.03 - $4.24

FTMH-113-03-F-DV-ES-A-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
93 pcs
On Request
93 pcs On Request 1 On Request On Request 1842 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTMH-113-03-F-DV-ES-A-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Length - Post
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

FTMH-113-03-F-DV-ES-A-P-TR Description

Short technical summary and product information.

The FTMH-113-03-F-DV-ES-A-P-TR is a 26-position, 2-row, 1.00mm pitch surface mount header from Samtec's FTMH series. It features male pins with square contacts made of phosphor bronze, and a gold flash contact finish on the mating area with matte tin on the termination tails. The connector includes end shrouds for polarization, board guides for alignment, and a pick-and-place pad for automated assembly.



This connector is rated for 3.1A per pin (with 2 pins powered) and has a voltage rating of 270 VAC / 302 VDC. It operates over a temperature range of -55°C to +125°C. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The push-pull fastening type ensures secure mating.



The header is designed for surface mount soldering with a solder termination. It has a lead coplanarity of 0.10mm max for reliable SMT processing. The part is supplied in tape and reel packaging for automated placement. This connector is suitable for board-to-board applications and is designed to mate with Samtec's CLM series receptacles.

FTMH-113-03-F-DV-ES-A-P-TR Quick Information

Product Type: Header, Male Pins
Series: FTMH
Canonical Name: Samtec FTMH-113-03-F-DV-ES-A-P-TR - 26 Position 1mm Pitch Surface Mount Header, Male Pins
Subcategory: Board to Board Header

FTMH-113-03-F-DV-ES-A-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable (per datasheet)

FTMH-113-03-F-DV-ES-A-P-TR Estimated Pricing

Qty Low High
700+ $4.24 $4.24
1,400+ $4.05 $4.05
2,100+ $4.03 $4.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTMH-113-03-F-DV-ES-A-P-TR Features

  • 26 positions in 2 rows.
  • 1.00mm pitch for compact designs.
  • Gold flash on mating contacts.
  • Surface mount with tape and reel packaging.
  • End shrouds for polarization and protection.

FTMH-113-03-F-DV-ES-A-P-TR Applications

  • Board-to-board interconnections.
  • Automated SMT assembly lines.
  • Compact electronic devices.
  • High-density packaging.

FTMH-113-03-F-DV-ES-A-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTMH-113-03-F-DV-ES-A-P-TR have?

26 positions in 2 rows.

What is the pitch of this connector?

1.00mm (0.039").

What is the current rating?

3.1A per pin (2 pins powered).

What is the voltage rating?

270 VAC / 302 VDC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What contact finish is used?

Gold flash on mating area, matte tin on termination.
