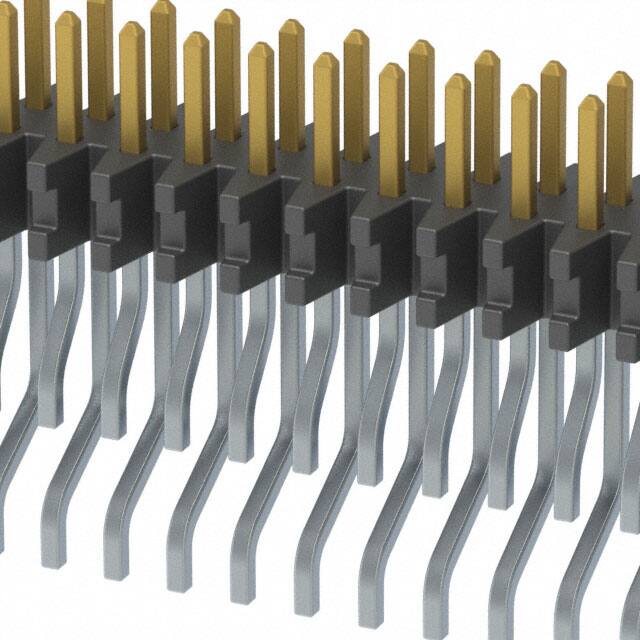

The Samtec FTMH-113-02-L-DH-K-TR is a micro terminal strip header from the FTMH series, designed for high-density board-to-board interconnections. It features 26 male pins arranged in 2 rows at a 1.00mm pitch, with a right-angle surface mount orientation. The contact material is phosphor bronze with a gold plating of 10 µ" (0.25 µm) on the mating area and matte tin on the termination tail. The insulator is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Electrical specifications include a current rating of 3.1A per pin when 2 pins are powered, and a voltage rating of 270 VAC / 302 VDC. The operating temperature range spans -55°C to 125°C. The header is unshrouded with a push-pull fastening type and includes a polyimide pick-and-place pad for automated assembly. It is sold in tape and reel packaging.
This connector is suitable for applications requiring reliable signal connections in compact electronic devices. It mates with Samtec CLM series connectors. The lead style is -02 with a 1.91mm post length, and SMT lead coplanarity is 0.10mm maximum.
| Qty | Low | High |
|---|---|---|
| 900+ | $4.58 | $4.58 |
| 1,800+ | $3.77 | $3.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 26 positions (all loaded).
The pitch is 1.00mm (0.039").
The datasheet specifies 3.1A per pin when 2 pins are powered; the product database lists 2.8A per contact. Verify the appropriate rating for your application.
The voltage rating is 270 VAC and 302 VDC.
It is surface mount, right angle.
The insulator is black liquid crystal polymer (LCP) with UL94 V-0 rating.
The operating temperature range is -55°C to 125°C.
