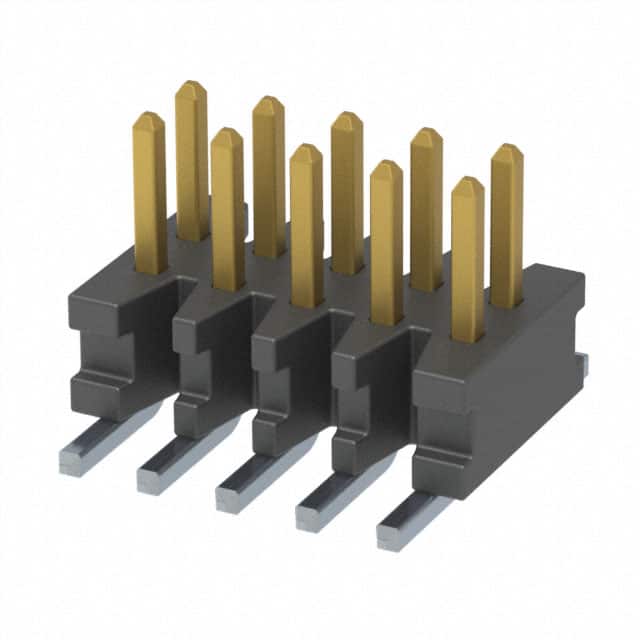

FTMH-105-03-L-DV Samtec FTMH-105-03-L-DV is a 10 position, 2 row, 1.00mm pitch surface mount unshrouded header with male pin contacts and tin finish.
Mfr Part #:

FTMH-105-03-L-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTMH-105-03-L-DV is a 10 position, 2 row, 1.00mm pitch surface mount unshrouded header with male pin contacts and tin finish.
✓ Total Stock: 4 pcs
$ Price Range: $1.10 - $1.94

FTMH-105-03-L-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTMH-105-03-L-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTMH-105-03-L-DV Description

Short technical summary and product information.

The Samtec FTMH-105-03-L-DV is a 10 position, 2 row, 1.00mm pitch surface mount unshrouded header from the FTMH series. It features male pin contacts made of phosphor bronze with a tin finish (10.0µin thickness) and a black liquid crystal polymer (LCP) insulator rated UL94 V-0. The contact length is 1.65mm and the insulation height is 1.50mm.



This connector is designed for board-to-board applications and uses a push-pull fastening mechanism. It is rated for 2.8A per contact and operates over a temperature range of -55°C to +125°C. The termination style is solder, and the part is RoHS3 compliant with an MSL of 1 (unlimited).



The FTMH-105-03-L-DV is a dual vertical (DV) configuration with all 10 positions loaded. It is suitable for surface mount assembly and is compatible with tape and reel packaging options as noted in the datasheet.

FTMH-105-03-L-DV Quick Information

Product Type: Header, Male Pins
Series: FTMH
Canonical Name: Samtec FTMH-105-03-L-DV 10 Position 1.00mm Pitch Surface Mount Unshrouded Header
Subcategory: Unshrouded Header

FTMH-105-03-L-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FTMH-105-03-L-DV Estimated Pricing

Qty Low High
1+ $1.94 $1.94
50+ $1.80 $1.80
1,044+ $1.39 $1.39
2,088+ $1.29 $1.29
5,104+ $1.10 $1.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTMH-105-03-L-DV Features

  • 10 position, 2 row unshrouded header.
  • 1.00mm pitch surface mount design.
  • Tin-plated phosphor bronze contacts.
  • Rated for 2.8A per contact.
  • -55°C to +125°C operating range.

FTMH-105-03-L-DV Applications

  • Board-to-board interconnect applications.
  • Compact electronic device assemblies.
  • Surface mount PCB designs.

FTMH-105-03-L-DV FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the FTMH-105-03-L-DV have?

10 positions in 2 rows.

What is the pitch of this header?

1.00mm (0.039 inches).

What is the current rating per contact?

2.8A per contact.

What is the operating temperature range?

-55°C to +125°C.

What mounting type does this connector use?

Surface mount with solder termination.
