Mfr Part #:

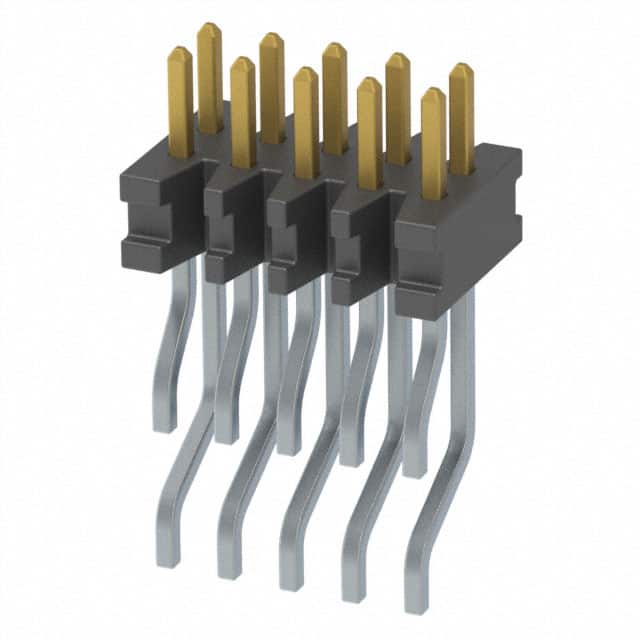

FTMH-105-03-L-DH-K-TR

Samtec FTMH-105-03-L-DH-K-TR is a 1.00mm pitch 10-position dual row surface mount right-angle unshrouded header with male square pins.

✓ Total Stock: 49 pcs

$ Price Range: $1.67 - $3.58

FTMH-105-03-L-DH-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	49 pcs On Request	49 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FTMH-105-03-L-DH-K-TR Description

Short technical summary and product information.

The Samtec FTMH-105-03-L-DH-K-TR is a 1.00mm pitch micro terminal strip header designed for board-to-board applications. It features 10 positions arranged in 2 rows with a dual horizontal (right-angle) orientation. The connector is unshrouded and uses a push-pull fastening mechanism.

Electrical specifications include a current rating of 3.1A per pin (2 pins powered) and a voltage rating of 270 VAC / 302 VDC. The operating temperature range spans -55°C to +125°C. The contacts are made of phosphor bronze with 10µ" gold plating on the mating post and matte tin on the tail.

The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The component is surface mount, right-angle, and supplied in tape and reel packaging. A polyimide film pick and place pad is included for automated assembly.

FTMH-105-03-L-DH-K-TR Quick Information

Product Type: Header, Male Pins

Series: FTMH

Canonical Name: Samtec FTMH-105-03-L-DH-K-TR 1.00mm Pitch 10-Position Dual Row Surface Mount Right-Angle Unshrouded Header

Subcategory: Unshrouded

FTMH-105-03-L-DH-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Compliant

Lead Free: Lead-Free Solderable

FTMH-105-03-L-DH-K-TR Estimated Pricing

Qty	Low	High
1+	$3.58	$3.58
50+	$3.26	$3.26
100+	$2.85	$2.85
500+	$2.69	$2.69
925+	$2.27	$2.27
1,850+	$1.90	$1.90
4,625+	$1.67	$1.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTMH-105-03-L-DH-K-TR Features

1.00mm pitch dual row header.
10 positions with all positions loaded.
Surface mount right-angle termination.
3.1A current rating per pin.
Gold plated phosphor bronze contacts.

FTMH-105-03-L-DH-K-TR Applications

Board-to-board interconnect applications.
Compact electronic device assemblies.
Automated pick and place assembly.
High-density signal routing designs.

FTMH-105-03-L-DH-K-TR FAQs

5 frequently asked questions generated from this part’s specifications.

What is the pitch of the FTMH-105-03-L-DH-K-TR?

The pitch is 1.00mm (0.039").

How many positions does this header have?

It has 10 positions in 2 rows, all positions loaded.

What is the current rating of this connector?

The current rating is 3.1A per pin (2 pins powered).

What is the voltage rating?

The voltage rating is 270 VAC / 302 VDC.

What is the mounting type?

Surface mount, right angle.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	1.65mm (0.065")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8A per Contact
Fastening Type	Push-Pull
Features	Pick and Place
Halogen Free	Yes
Insulation Color	Black
Insulation Height	3.18mm (0.125")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.0 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.00mm
Row Spacing	0.039" (1.00mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board
Tape & Reel	Yes
Termination	Solder
Voltage Rating	270 VAC / 302 VDC
