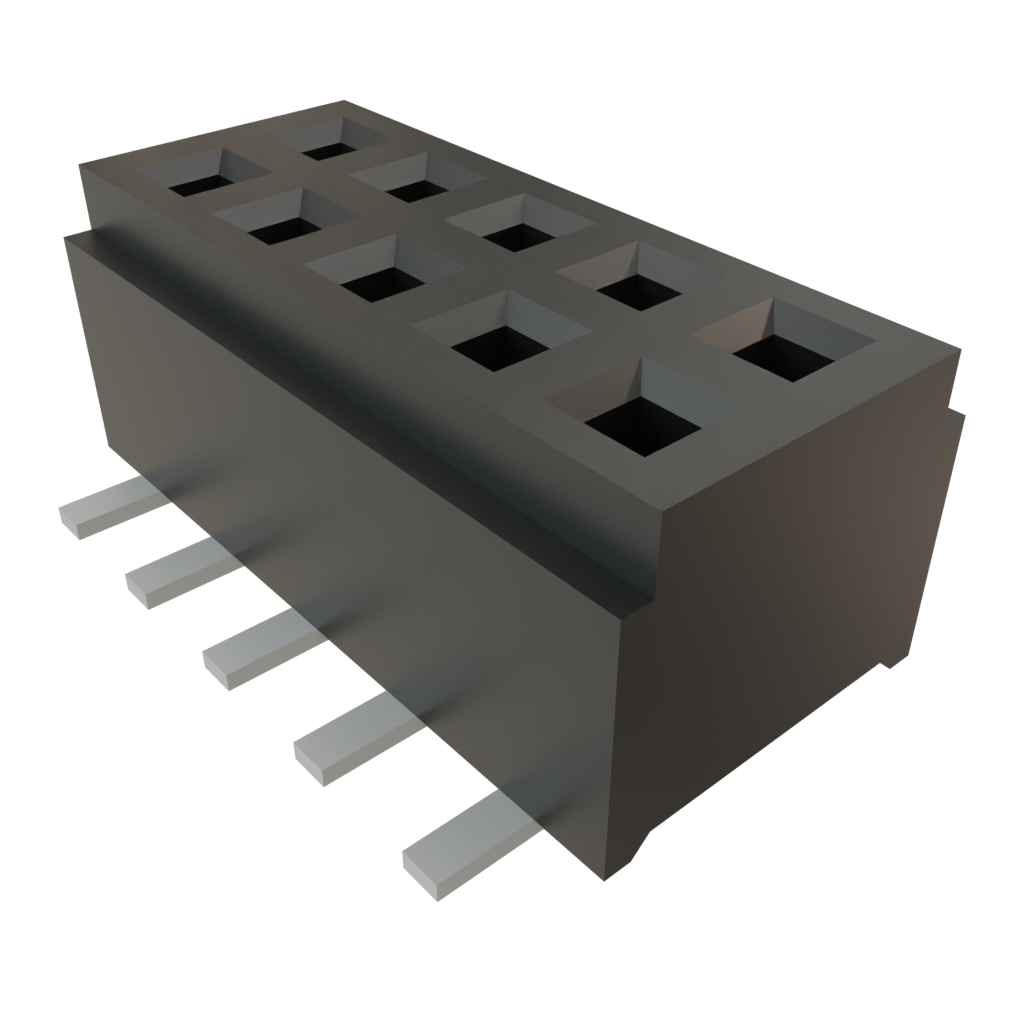

FTMH-105-03-F-DV Samtec FTMH-105-03-F-DV is a 10-position, 2-row, 1mm pitch surface mount header with male pins, unshrouded, for board-to-board applications.
Mfr Part #:

FTMH-105-03-F-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTMH-105-03-F-DV is a 10-position, 2-row, 1mm pitch surface mount header with male pins, unshrouded, for board-to-board applications.
✓ Total Stock: 13 pcs
$ Price Range: $1.03 - $2.07

FTMH-105-03-F-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTMH-105-03-F-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

FTMH-105-03-F-DV Description

Short technical summary and product information.

The Samtec FTMH-105-03-F-DV is a 10-position, 2-row, 1.00mm pitch surface mount header from the FTMH series. It features male square pins with a gold flash on the post and matte tin on the tail, ensuring reliable connectivity. The header is unshrouded with a push-pull fastening type, designed for board-to-board interconnects.



Electrical ratings include 3.1A per pin (2 pins powered) and 270 VAC / 302 VDC. The operating temperature range is -55°C to 125°C. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.



The component is surface mount with a lead style of 1.65mm post length. It is lead-free solderable and has an SMT lead coplanarity of 0.10mm for the -DV option. Packaging is in tubes of 116 pieces.

FTMH-105-03-F-DV Quick Information

Product Type: Header, Male Pins
Series: FTMH
Canonical Name: Samtec FTMH-105-03-F-DV 10 Position 1mm Pitch Surface Mount Header, Male Pins
Subcategory: Male Pins

FTMH-105-03-F-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: No SVHCs

FTMH-105-03-F-DV Estimated Pricing

Qty Low High
1+ $2.07 $2.07
50+ $1.66 $1.66
116+ $1.45 $1.45
580+ $1.36 $1.36
1,044+ $1.20 $1.20
2,088+ $1.05 $1.05
5,104+ $1.03 $1.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTMH-105-03-F-DV Features

  • 10 positions in 2 rows at 1mm pitch.
  • Gold flash on post, matte tin on tail.
  • Rated for 3.1A per pin (2 pins powered).
  • Surface mount with 0.10mm coplanarity.
  • Operating temperature range -55°C to 125°C.

FTMH-105-03-F-DV Applications

  • Used in board-to-board stacking applications.
  • Ideal for high-density interconnect designs.
  • Suitable for industrial and automotive electronics.
  • Pairs with Samtec CLM series sockets.

FTMH-105-03-F-DV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions in 2 rows.

What is the pitch?

1.00mm.

What is the current rating?

3.1A per pin (2 pins powered).

What is the voltage rating?

270 VAC / 302 VDC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold flash on post, Matte Tin on tail.
