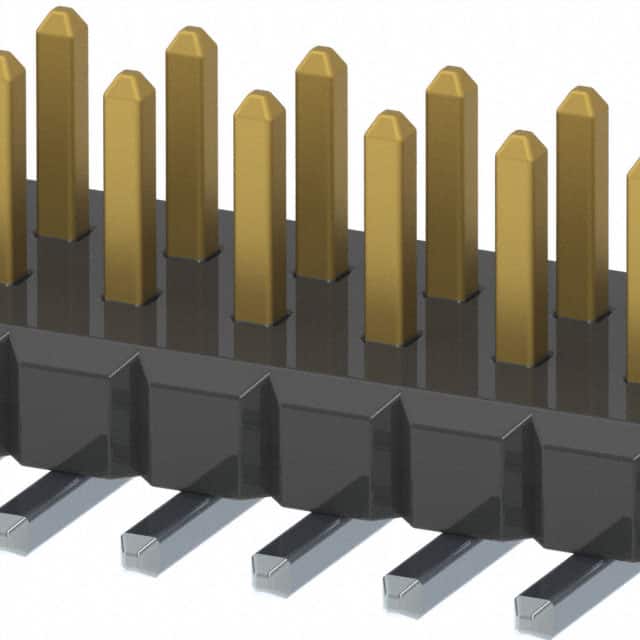

FTM-120-03-L-DV-P FTM-120-03-L-DV-P is a 40 position, 2 row surface mount male pin header with 1mm pitch, rated for 2.8A per contact. It features a black LCP insulator, gold plating on mating contact, and a pick and place pad for automated assembly.
Mfr Part #:

FTM-120-03-L-DV-P

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
FTM-120-03-L-DV-P is a 40 position, 2 row surface mount male pin header with 1mm pitch, rated for 2.8A per contact. It features a black LCP insulator, gold plating on mating contact, and a pick and place pad for automated assembly.
✓ Total Stock: 45 pcs
$ Price Range: $3.73 - $6.65

FTM-120-03-L-DV-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request 2003 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTM-120-03-L-DV-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

FTM-120-03-L-DV-P Description

Short technical summary and product information.

The Samtec FTM-120-03-L-DV-P is a 40 position, dual row surface mount male pin header part of the FTM series of micro low profile terminal strips. It features a 1.00mm pitch and a 1.65mm post length, designed for compact board-to-board interconnections.



Electrical specifications include a current rating of 2.8A per contact (typical 3.1A per pin when 2 pins powered) and a voltage rating of 270 VAC / 302 VDC. The operating temperature range is -55°C to +125°C. The insulator is black Liquid Crystal Polymer (LCP) and contacts are phosphor bronze with 10µin gold plating on the mating surface and matte tin on the termination tails.



The header is unshrouded with a push-pull fastening type and includes a plastic pick and place pad for automated assembly. Packaging is tube (29 parts per tube) with a tape and reel option available. It is RoHS compliant, REACH compliant (no SVHCs), halogen free, and has MSL Level 1 moisture sensitivity. Mating connectors include the Samtec CLM and MLE series sockets.

FTM-120-03-L-DV-P Quick Information

Product Type: Male Pin Header
Series: FTM
Canonical Name: 1.00mm Pitch Micro Low Profile Terminal Strip, 40 Position, Dual Row, Surface Mount, Male Pin Header, with Pick and Place Pad
Subcategory: Board-to-Board

FTM-120-03-L-DV-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1
REACH Status: No SVHCs
Lead Free: Yes

FTM-120-03-L-DV-P Estimated Pricing

Qty Low High
1+ $6.65 $6.65
29+ $5.80 $5.80
58+ $5.45 $5.45
116+ $4.98 $4.98
522+ $4.62 $4.62
1,015+ $4.18 $4.18
2,523+ $3.73 $3.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTM-120-03-L-DV-P Features

  • 40 position dual row surface mount header.
  • 1mm pitch for compact board-to-board connections.
  • Gold plating on mating contact (10µin).
  • Rated for 2.8A per contact.
  • Pick and place pad included.

FTM-120-03-L-DV-P Applications

  • Used in board-to-board stacking applications.
  • Mates with Samtec CLM low profile socket.
  • Ideal for compact electronic devices.
  • Suitable for automated pick-and-place assembly.
  • Applicable in industrial and consumer electronics.

FTM-120-03-L-DV-P FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the FTM-120-03-L-DV-P header have?

40 positions in 2 rows.

What is the pitch of this header?

1.00mm (0.039").

What is the current rating per contact?

2.8A per contact (typical 3.1A per pin when 2 pins are powered).

What is the voltage rating?

270 VAC / 302 VDC.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to +125°C.
