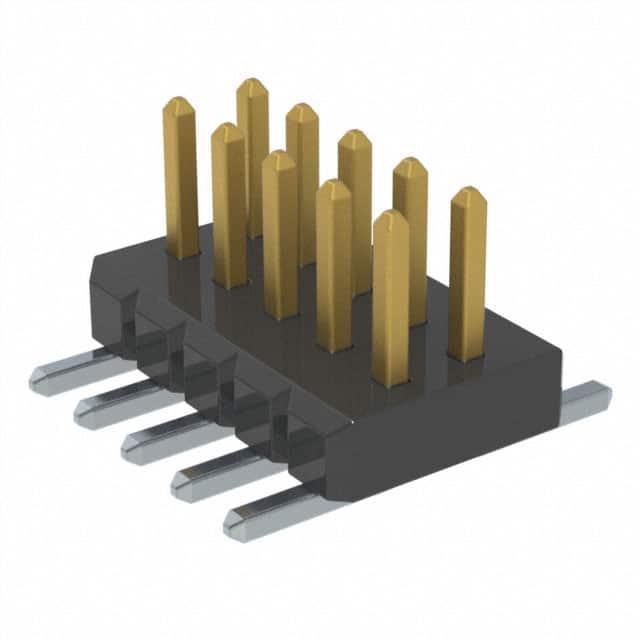

FTM-105-02-L-DV Samtec FTM-105-02-L-DV is a 10-position (2-row) surface mount male pin header with 1.00 mm pitch. It features a gold-plated post, matte tin tail, and operates from -55 to 125 °C.
Mfr Part #:

FTM-105-02-L-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTM-105-02-L-DV is a 10-position (2-row) surface mount male pin header with 1.00 mm pitch. It features a gold-plated post, matte tin tail, and operates from -55 to 125 °C.
✓ Total Stock: 11 pcs
$ Price Range: $0.98 - $2.25

FTM-105-02-L-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTM-105-02-L-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

FTM-105-02-L-DV Description

Short technical summary and product information.

The Samtec FTM-105-02-L-DV is a 1.00 mm pitch surface mount micro low profile terminal strip. It has 10 positions arranged in 2 rows with 1.00 mm row spacing. The connector is unshrouded with square male pins and uses phosphor bronze contacts plated with 10 µ" gold on the post and matte tin on the tail. The insulator is black liquid crystal polymer (LCP).



The header supports board-to-board stacking and mates with Samtec MLE or CLM series socket strips. It is rated for 3.1 A per contact (2 pins powered) over an operating temperature range of -55 °C to +125 °C.



Packaging is in tubes with 116 parts per tube. The part is surface mount with solder termination and has SMT lead coplanarity of 0.10 mm max for the -DV option. It is RoHS and REACH compliant, halogen free, and has moisture sensitivity level 1 (unlimited).

FTM-105-02-L-DV Quick Information

Product Type: Header, Male Pins
Series: FTM
Canonical Name: Samtec FTM-105-02-L-DV 1.00 mm Surface Mount Micro Low Profile Terminal Strip, 10 Positions, 2 Row, Male Pin Header, Gold Plated
Subcategory: Unshrouded Header, Male Pins

FTM-105-02-L-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1 (Unlimited)
REACH Status: Compliant
Lead Free: Yes

FTM-105-02-L-DV Estimated Pricing

Qty Low High
1+ $2.25 $2.25
50+ $1.80 $1.80
116+ $1.65 $1.65
580+ $1.60 $1.60
1,044+ $1.27 $1.27
2,088+ $1.15 $1.15
5,104+ $0.99 $0.99
10,092+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTM-105-02-L-DV Features

  • 10 positions, 2 rows at 1.00 mm pitch.
  • Gold plated post, matte tin tail.
  • Surface mount unshrouded male pin header.
  • Rated 3.1 A per contact (2 pins powered).
  • Operating temperature –55 °C to +125 °C.

FTM-105-02-L-DV Applications

  • Board-to-board stacking in compact electronics.
  • Mating with Samtec MLE or CLM socket strips.
  • Low profile surface mount interconnect designs.

FTM-105-02-L-DV FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the FTM-105-02-L-DV have?

It has 10 positions arranged in 2 rows.

What is the pitch of the FTM-105-02-L-DV?

The contact pitch is 1.00 mm (0.039 in) with a row spacing of 1.00 mm (0.039 in).

What is the current rating of the FTM-105-02-L-DV?

It is rated for 3.1 A per contact when 2 pins are powered.

What is the mounting type for the FTM-105-02-L-DV?

The connector is surface mount with solder termination.

What plating does the FTM-105-02-L-DV have?

The contact finish is 10 µ" Gold on post and Matte Tin on tail (plating option L).

What is the operating temperature range?

It operates from -55 °C to +125 °C.
