| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Data Rate | |
| Form Factor | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Wavelength |

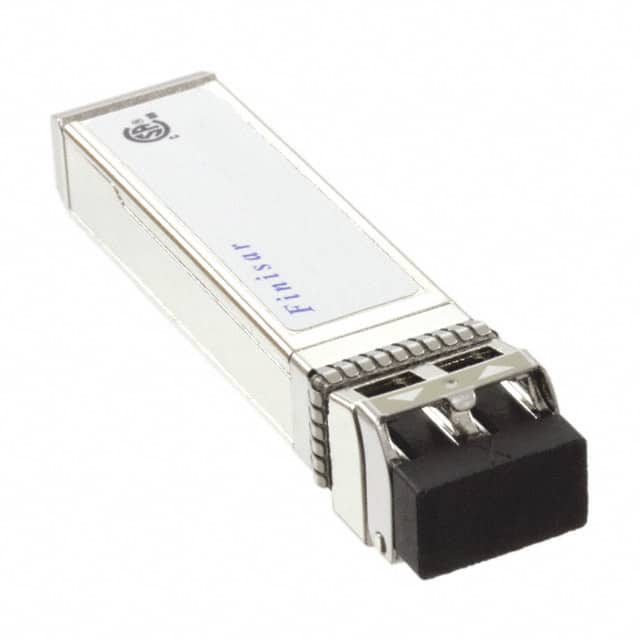

The Finisar FTLX8571D3BCL compatible SFP+ transceiver is designed for 10 Gigabit Ethernet and other high-speed networking applications. It operates at a wavelength of 850nm and is suitable for multi-mode fiber (MMF) connections, supporting distances up to 400 meters over OM4/OM5 fiber.
Key specifications include a maximum data rate of 11.32 Gbps, an average link budget of 6.1 dB, and a standard operating temperature range of 0°C to 70°C. The transceiver utilizes a VCSEL laser transmitter and a PIN photodiode receiver, with support for DDM/DOM for monitoring capabilities. It features an LC Duplex connector for secure fiber optic termination.
This transceiver is compatible with Finisar systems and is programmed with Finisar-recognized EEPROM. It supports various applications including 10G Ethernet, multiple Fiber Channel speeds (1G to 10G), and STM-64 SDH standards. The unit operates on a single +3.3V power supply and adheres to SFP+ MSA standards.
Designed as a replacement for the end-of-life OEM Finisar FTLX8571D3BCL, this compatible module offers a reliable solution for maintaining network infrastructure. Its pluggable SFP+ form factor ensures easy installation and compatibility with a wide range of networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FTLX8571D3BCL compatible transceiver supports data rates from 1.25 Gbps to 11.32 Gbps.
This SFP+ transceiver can support a maximum distance of 400 meters over OM4/OM5 multi-mode fiber.
It uses an LC Duplex connector.
The operating temperature range is standard 0°C to 70°C.
Yes, DDM/DOM is supported for monitoring capabilities.
The transmit wavelength is 850 nm.
The operating voltage is a single +3.3V power supply.
