| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Data Rate | |
| Mounting Type | |
| Operating Temperature Range | |
| Power Dissipation | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Wavelength |

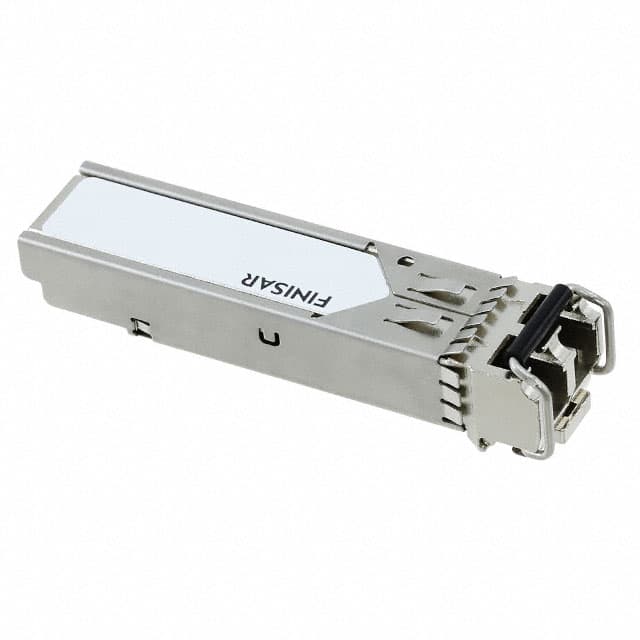

This Finisar Corporation FTLF8519P3BNL is a hot-pluggable SFP transceiver module designed for high-speed data communication. It supports bi-directional data links up to 2.125 Gbps and utilizes an 850nm Oxide VCSEL laser transmitter.
The module features an LC Duplex connector and is compatible with 50/125μm multimode fiber for distances up to 550m, and 62.5/125μm fiber for distances up to 300m. It operates on a single 3.3V power supply with a low power dissipation of less than 500mW.
Designed for industrial applications, this transceiver operates within an extended temperature range of -40°C to 85°C. It includes built-in digital diagnostic functions accessible via a 2-wire serial interface. The SFP footprint ensures compatibility with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Applications include 1.25 Gbps 1000Base-SX Ethernet, dual-rate 1.063/2.125 Gbps Fibre Channel, and wireless communication standards like CPRI and OBSAI.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FTLF8519P3BNL transceiver supports data rates up to 2.125 Gbps.
This SFP transceiver operates at a voltage of 3.3V.
The transceiver uses an 850nm Oxide VCSEL laser.
It uses an LC Duplex connector.
The industrial operating temperature range is -40°C to 85°C.
The power dissipation is less than 500mW.
The maximum distance on 50/125μm MMF is up to 550m.
