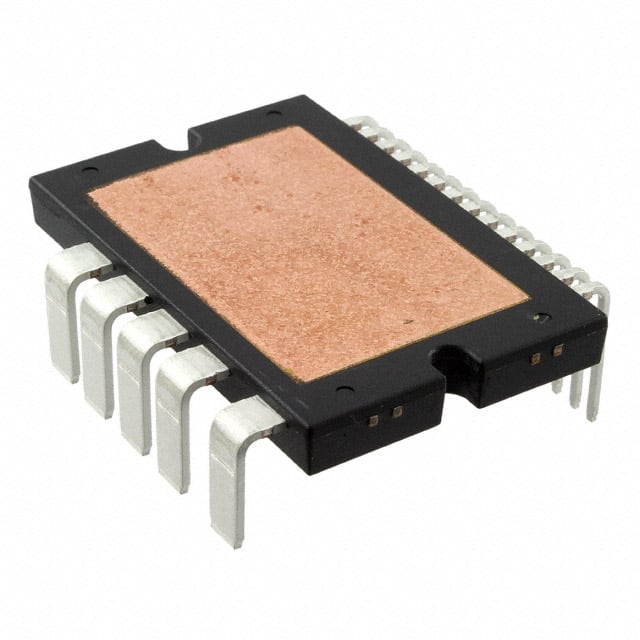

The FTCO3V455A1 is a 40V, 150A 3-phase N-Channel MOSFET array from ON Semiconductor, designed for automotive power applications. It integrates six N-channel trench MOSFETs in a 3-phase bridge configuration, providing a compact and efficient solution for motor drives. Key electrical specifications include a maximum drain-source voltage of 40V, continuous drain current of 150A at 25°C, and a low on-resistance of 1.66 mOhm typical at 80A and 10V gate drive. The module also features a logic-level gate for direct microcontroller interface, a precision shunt resistor for current sensing, and an NTC thermistor for temperature monitoring.
The device is housed in a 19-PowerDIP module with through-hole mounting, offering an isolation voltage of 2500V rms. It is rated for a maximum junction temperature of 175°C and has a thermal resistance of 0.8/1.1 °C/W (typical/maximum) from junction to case. The FTCO3V455A1 is 100% lead free and RoHS3 compliant, making it suitable for environmentally sensitive designs. Typical applications include electric power steering, electric water pumps, electric oil pumps, and electric fan drives in 12V automotive systems.
| Qty | Low | High |
|---|---|---|
| 44+ | $20.66 | $20.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (VDS) is 40V.
The continuous drain current (ID) is 150A at TC = 25°C with VGS = 10V.
The maximum drain-source on-resistance (Rds(on)) is 1.66 mOhm at ID = 80A and VGS = 10V.
The package is a 19-PowerDIP Module with through-hole mounting.
The maximum junction temperature (TJ) is 175°C.
Yes, the FTCO3V455A1 is RoHS3 compliant and 100% lead free.
The isolation voltage (Viso) is 2500V rms.
