| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

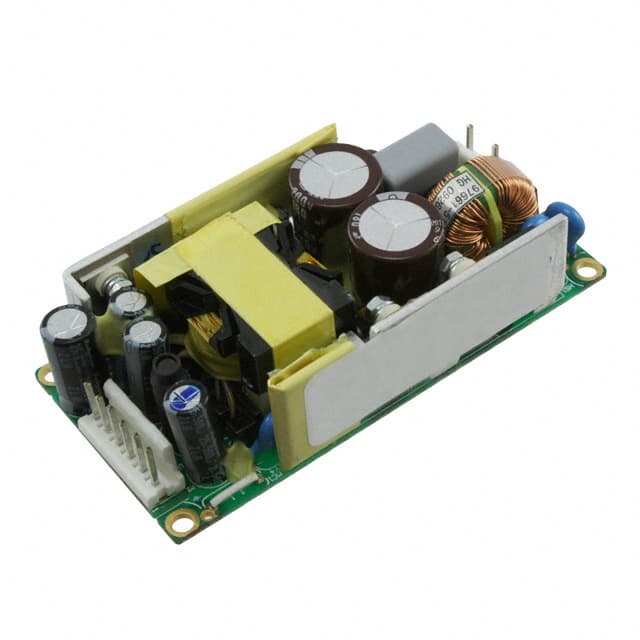

This Inventus Power FTB080015A is an AC/DC converter designed for commercial ITE applications. It operates with a universal input voltage range of 100 to 240 VAC, providing a stable output of 65W. The converter features an open frame construction and is designed for chassis mounting.
Key electrical specifications include an output current of 3.4A and an efficiency rating of 90%. The operating temperature range is from 0°C to 50°C. The unit has received approvals from CB, CE, and cTUVus agencies, indicating compliance with various international safety standards.
Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 25.7mm in height. The converter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited, making it suitable for a wide range of manufacturing environments.
The input voltage range is 100 to 240 VAC.
The output is 15V DC at 3.4A.
It is rated at 65W under natural convection and up to 100W with forced air cooling.
The converter has a typical efficiency of 90%.
The operating temperature range is 0°C to 50°C.
It carries CB, CE, and cTUVus approvals for ITE commercial applications.
The dimensions are 101.6 mm x 50.8 mm x 25.7 mm.
