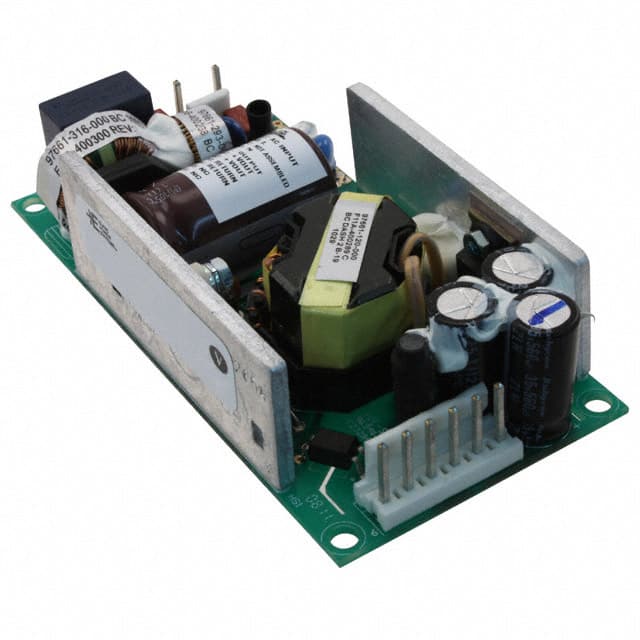

The FTA040009A from Inventus Power is a 40W open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers a regulated 9.0V output at 4.4A, with a peak current capability of 5.3A. The unit operates with a universal input voltage range of 85-264VAC and boasts a typical efficiency of 85%.
Key features include a hold-up time greater than 14ms at full load, start-up delay under 250ms, and over-voltage, over-current, and short-circuit protection. The power supply operates within a temperature range of 0°C to 70°C and has a demonstrated MTBF of over 200,000 hours. Its compact dimensions of 4.00" x 2.00" x 0.99" make it suitable for chassis mounting.
Compliance includes EISA and CEC standards, with safety approvals from CB, CE, cTUVus, UL, and CSA. Emissions meet FCC and CISPR Class B standards, and it is immune to various EN61000 standards.
100-240 VAC nominal.
9V at 4.4A (40W).
0°C to 70°C.
Over voltage protection (110-135%), over current protection (120-180%), short circuit protection (shutdown, auto-restart hiccup mode).
85% typical.
Chassis mount.
101.6mm x 50.8mm x 25.2mm (4.00" x 2.00" x 0.99").
