FT233HPQ-TRAY The FTDI FT233HPQ-TRAY is a USB 2.0 controller IC featuring a single channel with a maximum data rate of 12Mbps. It supports multiple interfaces including FIFO, I2C, Serial, and UART.
Mfr Part #:

FT233HPQ-TRAY

Available from 1 distributors
Mfr Name: FTDI, Future Technology Devices International Ltd
FTDI, Future Technology Devices International Ltd
The FTDI FT233HPQ-TRAY is a USB 2.0 controller IC featuring a single channel with a maximum data rate of 12Mbps. It supports multiple interfaces including FIFO, I2C, Serial, and UART.
✓ Total Stock: 2,000 pcs

FT233HPQ-TRAY Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FT233HPQ-TRAY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
ESD Protection
Failure Rate
Function
Height
Interface
Length
Mounting Type
Operating Temperature
Power Supply Type
Product Type
Protocol
Standards
Supplier Device Package
Voltage
View Similar Products (0)

FT233HPQ-TRAY Description

Short technical summary and product information.

The FTDI FT233HPQ-TRAY is a high-speed USB bridge with a Type-C/PD 3.0 controller. It fully supports the latest USB Type-C and Power Delivery (PD) standards, enabling power negotiation and current sink/source capabilities. This controller IC provides one independent channel compatible with the FT232H, offering a single Hi-Speed USB to multipurpose UART/FIFO solution.



Key features include support for PD Specification 3.0, USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatibility, and a Multi-Protocol Synchronous Serial Engine (MPSSE). It offers various interface configurations such as USB to asynchronous 245 FIFO mode with data rates up to 8 Mbyte/Sec, and USB to synchronous 245 parallel FIFO mode for transfers up to 40 Mbytes/Sec. The device also supports a proprietary half duplex FT1248 interface.

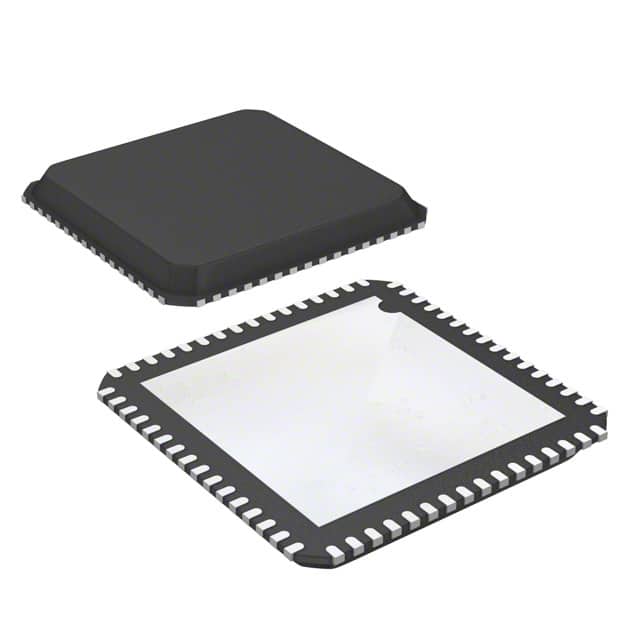

Packaged in a 64-QFN (9x9) surface-mount case, the FT233HPQ-TRAY operates within a temperature range of -40°C to 85°C. It requires a single power supply with a voltage range of 1.08V to 1.32V and 2.97V to 3.63V. The integrated design includes a 5V to 3.3/+1.8V LDO regulator and POR function.

FT233HPQ-TRAY Quick Information

Product Type: Controller IC
Series: FT233HP
Canonical Name: FTDI FT233HPQ-TRAY USB 2.0 Controller IC
Subcategory: USB Interface ICs

FT233HPQ-TRAY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FT233HPQ-TRAY Features

  • High-Speed USB 2.0 controller IC
  • Supports USB Type-C and PD 3.0
  • 12Mbps maximum data rate
  • Multiple interface support (FIFO, I2C, UART)
  • 64-pin QFN surface-mount package

FT233HPQ-TRAY Applications

  • USB to serial communication
  • Power delivery negotiation
  • Embedded system interfaces
  • Data acquisition systems

FT233HPQ-TRAY FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the FT233HPQ-TRAY?

The maximum data rate for the FT233HPQ-TRAY is 12Mbps.

What operating temperature range does the FT233HPQ-TRAY support?

The FT233HPQ-TRAY supports an operating temperature range of -40°C to 85°C.

What package type is the FT233HPQ-TRAY available in?

The FT233HPQ-TRAY is available in a 64-QFN (9x9) package.

What are the supported protocols for the FT233HPQ-TRAY?

The FT233HPQ-TRAY supports USB 2.0 and USB 3.0 protocols.

What interfaces does the FT233HPQ-TRAY offer?

The FT233HPQ-TRAY offers FIFO, I2C, Serial, and UART interfaces.

What is the supply voltage range for this controller IC?

The supply voltage range is 1.08V to 1.32V and 2.97V to 3.63V.

Does the FT233HPQ-TRAY support Power Delivery?

Yes, it supports PD Specification 3.0 and has 2 USB PD 3.0 Port Support.
