| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Function | |
| Interface | |
| Operating Temperature | |
| Protocol | |
| Standards | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Voltage |
The FTDI FT2233HPQ-TRAY is a versatile High-Speed USB device integrating a Type-C and Power Delivery (PD) 3.0 controller. This chip fully supports the latest USB Type-C and PD standards, enabling power negotiation to sink or source current.
Its core function is a USB bridge providing two independent channels, similar to the FT2232H, offering a dual Hi-speed USB to multipurpose UART/MPSSE solution. Advanced features include support for PD specification Rev 3.0, with Port 1 configurable for Sink or Dual-role and Port 2 acting as a Sink. It supports various PDOs (Power Data Objects) as sink or source, including 5V3A, 9V3A, 12V3A, 15V3A, and 20V3A.
The device handles the entire USB protocol on-chip, eliminating the need for USB-specific firmware programming. It is compatible with USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second). Two Multi-Protocol Synchronous Serial Engines (MPSSE) are available on channels A and B, simplifying designs for synchronous serial protocols like JTAG, I2C, SPI, or bit-bang. The UART interface supports data rates up to 12Mbaud and offers flexible configuration options for data bits, stop bits, and parity.

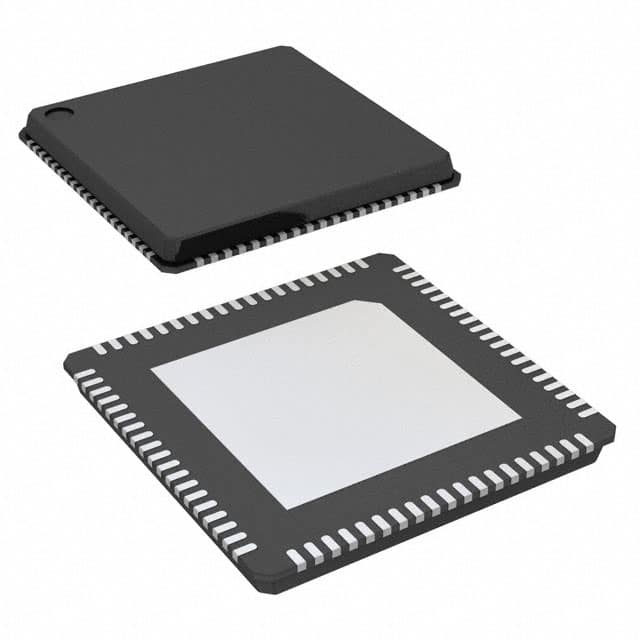

Packaged in a 76-QFN (9x9) with a 76-VFQFN Exposed Pad, the FT2233HPQ-TRAY operates within a temperature range of -40°C to 85°C. It requires a single supply voltage of +3.3V for operation and I/O interfacing, with an integrated +1.2V LDO regulator for VCORE. FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers are available, minimizing USB driver development requirements.
The operating temperature range is -40°C to 85°C (TA).
It supports operating voltages from 1.08V to 1.32V and 2.97V to 3.63V.
The FT2233HPQ-TRAY is supplied in a 76-VFQFN Exposed Pad package, with the supplier package being 76-QFN (9x9).
The device is RoHS3 Compliant and has a REACH status of Unaffected, with an MSL of 1 Unlimited.
It supports USB 3.0 standards, including Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second).
The controller supports PD specification Rev 3.0.
The interfaces available are I2C, UART, and USB.
