FT2232HQ The FTDI FT2232HQ is a Dual UART FIFO IC with a USB 2.0 interface. It operates within a 3V to 3.6V supply voltage range.
Mfr Part #:

FT2232HQ

Available from 1 distributors
Mfr Name: FTDI, Future Technology Devices International Ltd
FTDI, Future Technology Devices International Ltd
The FTDI FT2232HQ is a Dual UART FIFO IC with a USB 2.0 interface. It operates within a 3V to 3.6V supply voltage range.
✓ Total Stock: 3 pcs
$ Price Range: $0.99

FT2232HQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FT2232HQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Interface
Operating Temperature
Operating Voltage
Protocol
SVHC Present
Standards
Supplier Device Package
Tape & Reel
View Similar Products (0)

FT2232HQ Description

Short technical summary and product information.

The FTDI FT2232HQ is a high-performance Dual UART FIFO IC designed for USB to UART communication. It supports USB 2.0 standards and functions as a USB bridge.



This IC operates with a supply voltage ranging from 3V to 3.6V and consumes a typical current of 70mA. It is specified for operation in temperatures from -40°C to 85°C.

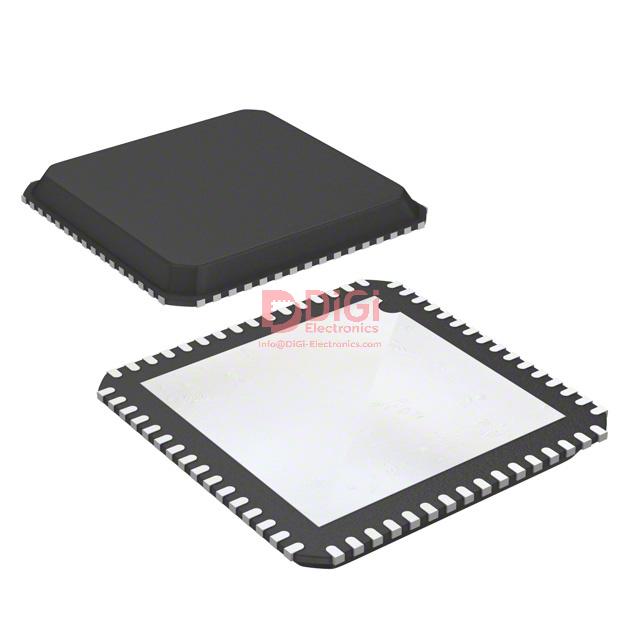

The FT2232HQ comes in a 64-VFQFN exposed pad package, suitable for surface mounting. It is supplied on Cut Tape (CT) and Digi-Reel®.



Key specifications include its dual UART FIFO functionality, USB 2.0 interface, and a compact 64-pin package.

FT2232HQ Quick Information

Product Type: UART IC
Series: FT-X, X-Chip
Canonical Name: FTDI FT2232HQ Dual UART FIFO IC
Subcategory: Dual UART FIFO

FT2232HQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FT2232HQ Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

FT2232HQ Features

  • Dual UART FIFO USB bridge IC.
  • USB 2.0 interface standard.
  • Operates at 3V to 3.6V supply.
  • Wide temperature range of -40°C to 85°C.
  • Compact 64-VFQFN exposed pad package.

FT2232HQ Applications

  • USB to serial communication.
  • Embedded system interfaces.
  • Data acquisition systems.
  • Industrial automation controls.

FT2232HQ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FT2232HQ?

The operating voltage range is 3V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the package type of the FT2232HQ?

The package is 64-VFQFN Exposed Pad.

What is the typical supply current?

The typical supply current is 70mA.

What is the function of the FT2232HQ?

The function is Bridge, USB to UART, FIFO.

What interface does the FT2232HQ support?

The interface is UART.

What USB standard does the FT2232HQ comply with?

It complies with USB 2.0.
