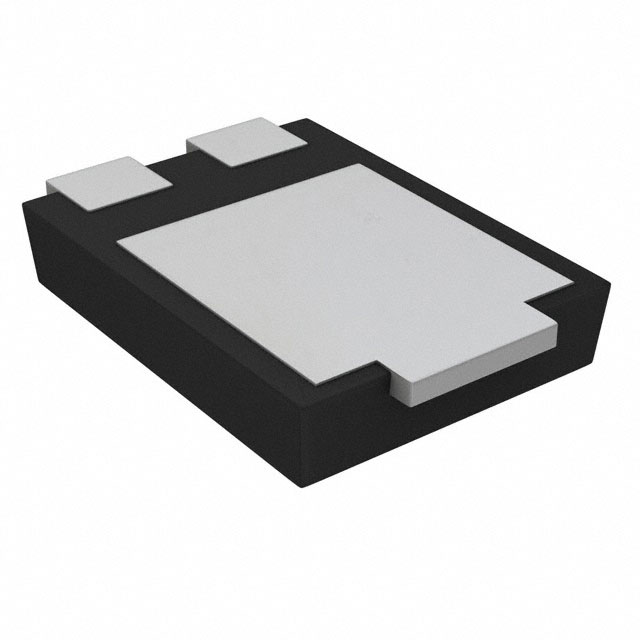

The FSV20100V is a 20A, 100V Schottky rectifier from On Semiconductor, designed for high-efficiency power conversion. It uses trench Schottky technology to achieve an ultra-low forward voltage drop of 660mV maximum at 20A, reducing power losses. The device is rated for a peak repetitive reverse voltage of 100V and a non-repetitive peak forward surge current of 270A.
This rectifier offers fast recovery (≤500ns at >200mA) and low reverse leakage current of 80µA at 100V. It operates over a junction temperature range of -55°C to +150°C. Thermal resistance is optimized with junction-to-ambient values of 100°C/W for minimum land pattern and 40°C/W for maximum land pattern.
The FSV20100V is housed in a low-profile TO-277-3 surface mount package (typical height 1.1mm). It is RoHS3 compliant, Pb-Free, and Halogen Free, meeting environmental standards. The device is supplied in tape and reel packaging with 5000 units per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.43 | $1.43 |
| 100+ | $0.97 | $0.97 |
| 500+ | $0.77 | $0.77 |
| 5,000+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage rating is 100V (DC blocking voltage and peak repetitive reverse voltage).
The average rectified forward current rating is 20A.
The maximum forward voltage drop at 20A is 660mV.
The reverse recovery time is ≤500ns at >200mA (fast recovery category).
It is available in a TO-277-3 surface mount package (TO-277, 3-PowerDFN).
The non-repetitive peak forward surge current is 270A.
Yes, it is RoHS3 compliant, Pb-Free, and Halogen Free.
