FSUSB42UMX The FSUSB42UMX from On Semiconductor is a DPDT analog switch designed for USB applications. It features break-before-make functionality and operates within a voltage range of 2.4V to 4.4V.
Mfr Part #:

FSUSB42UMX

Available from 7 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FSUSB42UMX from On Semiconductor is a DPDT analog switch designed for USB applications. It features break-before-make functionality and operates within a voltage range of 2.4V to 4.4V.
✓ Total Stock: 311,488 pcs

FSUSB42UMX Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSUSB42UMX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Lead Spacing
Mounting Type
Number of Channels
On
Operating Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Tape & Reel
Voltage
View Similar Products (0)

FSUSB42UMX Description

Short technical summary and product information.

The FSUSB42UMX is an analog switch from On Semiconductor, categorized under special purpose interface ICs. This DPDT (Double Pole, Double Throw) switch is specifically designed for USB 2.0 applications, offering break-before-make switching.



Key electrical specifications include an operating voltage range of 2.4V to 4.4V and an on-resistance of 6.5 Ohms. It operates efficiently with a bandwidth of 720MHz. The device is built to withstand a wide range of environmental conditions, with an operating temperature range of -40°C to 85°C (TA).

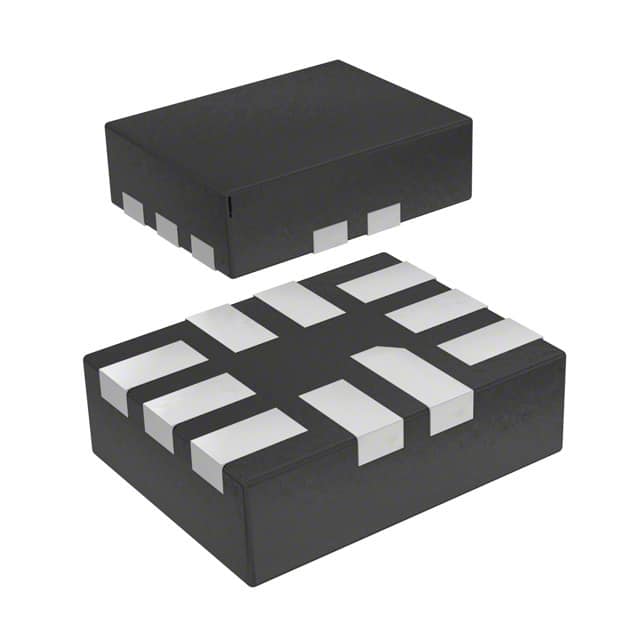

Packaged in a 10-UFQFN configuration, the FSUSB42UMX is designed for surface mount installation. Its supplier package is specified as 10-UMLP with dimensions of 1.4x1.8mm. The component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions.

FSUSB42UMX Quick Information

Product Type: Analog Switch - Special Purpose
Canonical Name: FSUSB42UMX
Subcategory: Special Purpose

FSUSB42UMX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSUSB42UMX Features

  • DPDT switch for USB 2.0 applications.
  • Features break-before-make switching.
  • Operates from 2.4V to 4.4V.
  • Low 6.5 Ohm on-resistance.
  • Wide -40°C to 85°C temperature range.

FSUSB42UMX Applications

  • Ideal for USB data switching.
  • Suitable for portable electronics.
  • Used in consumer devices.
  • Applicable in communication systems.

FSUSB42UMX FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the FSUSB42UMX?

The operating voltage for the FSUSB42UMX is between 2.4V and 4.4V.

What type of package is the FSUSB42UMX in?

The FSUSB42UMX is available in a 10-UFQFN package.

What is the operating temperature range of the FSUSB42UMX?

The operating temperature range for the FSUSB42UMX is -40°C to 85°C (TA).

Is the FSUSB42UMX RoHS compliant?

The FSUSB42UMX is RoHS3 Compliant.
