FSUSB30MUX The FSUSB30MUX is a USB Switch IC from ON Semiconductor. It offers a bandwidth of 750 MHz and operates within a voltage range of 3V to 4.3V.
Mfr Part #:

FSUSB30MUX

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FSUSB30MUX is a USB Switch IC from ON Semiconductor. It offers a bandwidth of 750 MHz and operates within a voltage range of 3V to 4.3V.
✓ Total Stock: 145,520 pcs

FSUSB30MUX Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
135,000 pcs
On Request
135000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,499 pcs
On Request
9499 pcs On Request 1 On Request On Request 21+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSUSB30MUX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Lead Style
Mounting Type
Number of Channels
On
Operating Temperature
Supplier Device Package
Switch Circuit
Voltage
View Similar Products (0)

FSUSB30MUX Description

Short technical summary and product information.

The FSUSB30MUX is a USB Switch IC manufactured by ON Semiconductor. This component is designed for USB applications and features a bandwidth of 750 MHz. It operates within a voltage range of 3V to 4.3V and has a maximum on-resistance of 10 Ohms.



The switch configuration is DPDT, supporting a break-before-make function. The operating temperature range is from -40°C to +85°C. It has an on-time of 7 ns and an off-time of 4 ns.

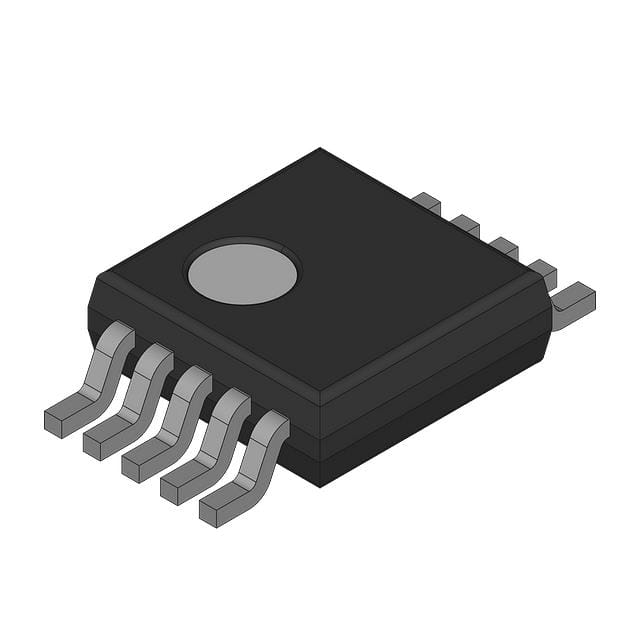

This IC is available in a 10-MSOP package and is designed for surface mounting. The packaging is supplied on a reel with a factory pack quantity of 4000 units. It is classified under Analog Switches - Special Purpose.



The FSUSB30MUX is RoHS3 compliant, has an MSL of 1, and is REACH unaffected. It is suitable for various USB interface designs requiring reliable switching.

FSUSB30MUX Quick Information

Product Type: USB Switch IC
Series: Fsusb30
Canonical Name: FSUSB30MUX USB Switch IC
Subcategory: USB Switch ICs

FSUSB30MUX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSUSB30MUX Features

  • USB 2.0 switch with 750 MHz bandwidth.
  • Operates from 3V to 4.3V supply.
  • 10 Ohms maximum on-resistance.
  • Surface mount 10-MSOP package.
  • Break-before-make switching function.

FSUSB30MUX Applications

  • Ideal for USB 2.0 data switching.
  • Suitable for portable electronic devices.
  • Used in interface control circuits.
  • Applications requiring high-speed USB.

FSUSB30MUX FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the FSUSB30MUX?

The FSUSB30MUX operates from 3V to 4.3V.

What package type is the FSUSB30MUX available in?

The FSUSB30MUX is available in a 10-MSOP package.

What is the operating temperature range of the FSUSB30MUX?

The operating temperature range for the FSUSB30MUX is -40°C to +85°C.

Is the FSUSB30MUX RoHS compliant?

The FSUSB30MUX is RoHS3 Compliant.
