| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,328 pcs
|
1328 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| Features | |
| Mounting Style | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Switch Circuit | |
| Tape & Reel | |
| Voltage |

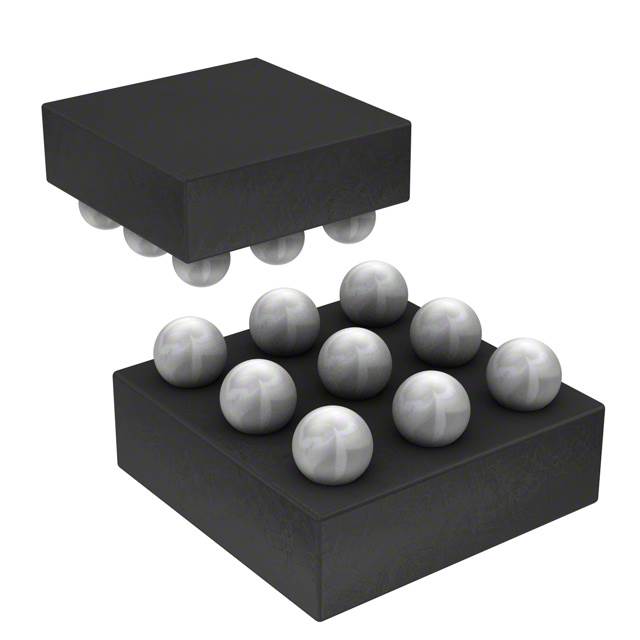

The FSUSB242UCX is a USB Switch IC manufactured by ON Semiconductor, specifically designed for Type-C USB protection applications. This component offers a 2-channel configuration with a DPDT switch circuit and a 2:1 multiplexer.
Key electrical specifications include a typical on-resistance of 5 Ohms, a supply voltage range of 2.7V to 5.5V, and a bandwidth of 1GHz. It operates with a supply current of 10 uA and a continuous current rating of 75 mA. The switch has an on-time of 0.1 ms and an off-time of 0.2 us.
This IC is suitable for USB applications and operates within a temperature range of -40°C to 85°C. It is supplied in a compact 9-WLCSP package, designed for surface mount installation.
The FSUSB242UCX is RoHS3 compliant and has an MSL rating of 1.
The typical on-resistance is 5 Ohms.
The operating supply voltage range is 2.7V to 5.5V.
The FSUSB242UCX has 2 channels.
The operating temperature range is -40°C to 85°C.
The FSUSB242UCX is supplied in a 9-WLCSP package.
Yes, the FSUSB242UCX is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
