| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,570 pcs
|
1570 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |

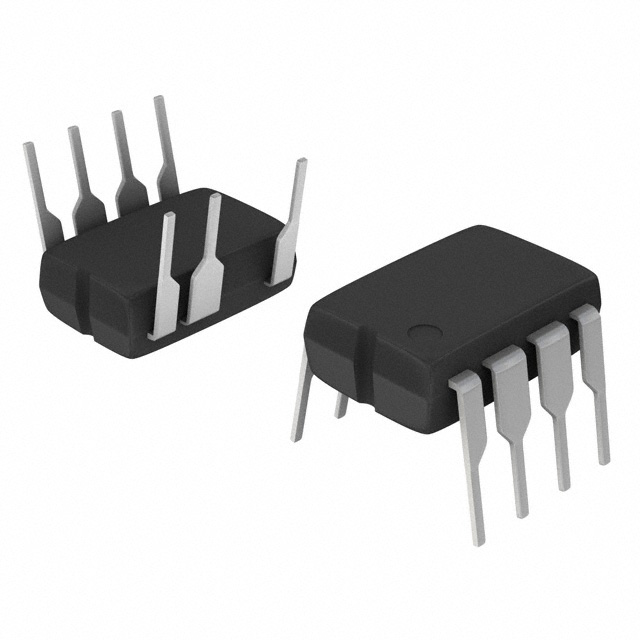

The FSQ510 is an integrated circuit from ON Semiconductor, functioning as an offline switch for flyback power supply applications. It is designed for through-hole mounting and comes in a 7-DIP package.
Key electrical specifications include an operating voltage range of 6.7V to 20V, a power output of 9W, and an operating frequency between 94.3kHz and 132kHz. The device supports a duty cycle of up to 60% and includes fault protection features such as current limiting, overload, and over-temperature protection. It also features sync control.
The operating temperature range for the FSQ510 is -40°C to 140°C (TJ). The component is specified as RoHS3 compliant, with an MSL rating of 1, and REACH unaffected. Its isolated output and internal switch capabilities make it suitable for various power conversion designs.
This offline switch is packaged in an 8-DIP form factor with 7 leads, designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 6.7V to 20V.
The FSQ510 is available in a 7-DIP package, designed for through-hole mounting.
The operating temperature range is -40°C to 140°C (TJ).
