| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

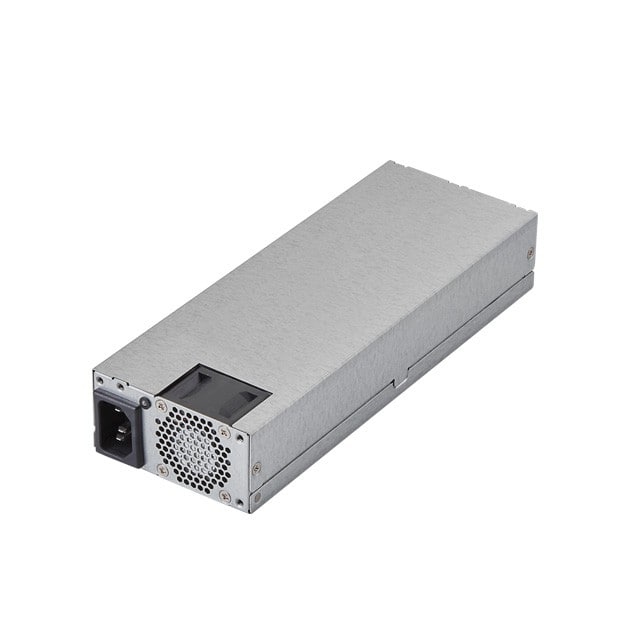

The FSP850-50FGPH3 is an industrial-level switching power supply from FSP Technology Inc., offering a total power capacity of 850 Watts. This enclosed converter is designed for chassis mounting and features universal input voltage ranging from 90-264Vac with a frequency of 47-63Hz.
Key electrical specifications include multiple output voltages such as +3.3V, +5V, +12V, -12V, and +5Vsb, with maximum currents up to 70.8A on the +12V rail. It boasts 80 Plus Platinum efficiency and provides essential protections like Over Current, Over Temperature, and Over Voltage Protection. The power supply also supports PMBus V1.2 features, making it suitable for industrial environments.
Mechanically, the unit measures 220 x 81.5 x 40.5 mm. It is designed to operate at altitudes up to 5,000 meters and has a working temperature range of up to 50°C. The power supply complies with safety standards including CB 62368-1 and CB 60950-1, and holds approvals from agencies like CB, CCC, CE, cULus, FCC, GS, and TUV.
This power supply is an ideal choice for server, workstation, communication, storage system, and other automation applications requiring reliable and efficient power conversion.
The input voltage range is 90-264Vac.
The maximum output current for the +12V rail is 70.8A.
The efficiency rating is 80 Plus Platinum.
The dimensions are 220mm x 81.5mm x 40.5mm.
The working temperature is up to 50°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
