| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

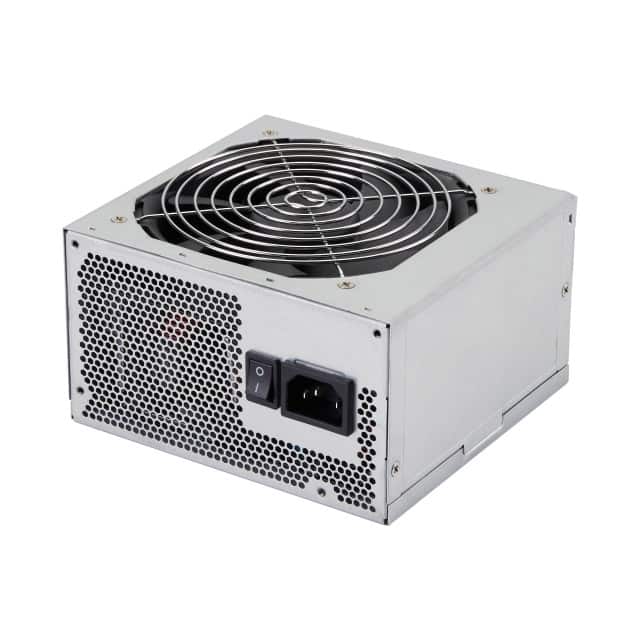

The FSP650-50ABA is an ATX form factor AC/DC converter designed for various applications. It provides a total output wattage of 650W and boasts an efficiency rating of 80 Plus Gold, ensuring optimal power delivery and energy savings.
This converter operates with a wide input voltage range of 90-264Vac and a frequency of 47-63Hz. It features multiple output voltages including +3.3V, +5V, +12V, -12V, and +5Vsb, with specific current ratings for each. The unit is designed for chassis mounting and includes essential protections such as Over Current, Over Temperature, and Over Voltage Protection.
Key features include a hold-up time of at least 16ms at 115V/60Hz and 230V/50Hz, and an MTBF of 100,000 hours. The operating temperature range is from 0°C to 40°C, with storage temperatures from -40°C to +70°C. It meets standard number 62368-1 and has received approvals from agencies like CB, CCC, CE, cURus, FCC, and TUV.
90-264Vac.
0°C to 40°C.
80 Plus Gold.
The converter provides +3.3V at 20A, +5V at 20A, +12V at 54.17A, -12V at 0.3A, and +5Vsb at 3.0A.
Over current protection, over voltage protection, and over temperature protection.
ATX form factor, chassis mount.
140.0mm x 150.1mm x 86.1mm (L x W x H).
