| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

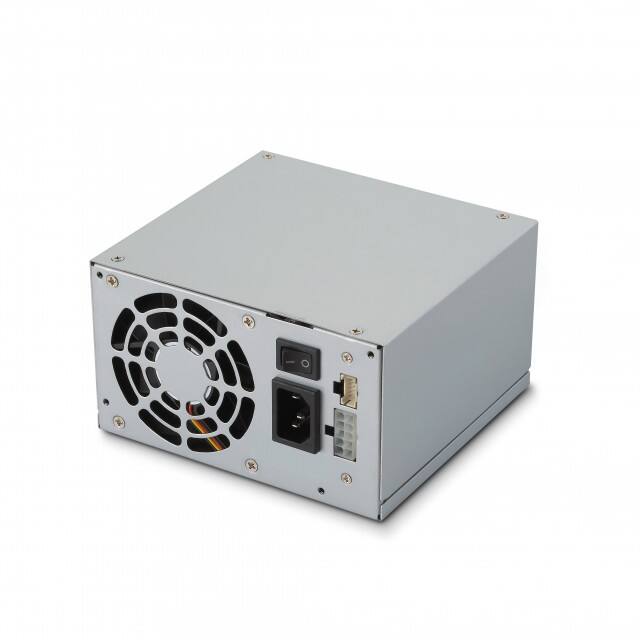

The FSP550-70MUA is a universal input ATX power supply designed for applications requiring reliable power with battery backup. It features real-time AC power fail detection and a lead-acid battery charger, allowing for a non-interruptible power system.
This power supply operates with an input voltage range of 90-264 VAC and a frequency of 47-63 Hz, providing a maximum output power of 500W. It boasts 80% minimum efficiency and includes essential protections such as OVP, OCP, Short Circuit, OTP, and UVP. The unit supports a 24V lead-acid battery pack and includes a smart battery charger that operates in constant current and constant voltage modes.
Designed for demanding environments, the FSP550-70MUA operates from 0℃ to +50℃ and can function at altitudes up to 5000 meters. It meets various EMC performance standards including EN55011/EN55022 Class B and IEC60601-1-2. The power supply is chassis mounted and has dimensions of 150.0mm x 140.0mm x 86.0mm.
Key features include BF Class insulation, power failed detection, USB 2.0 compatible interface for host computer management, and support for power-on at battery mode. It is suitable for medical applications and industrial computers requiring rechargeable power supplies.
90-264 VAC.
0°C to +50°C.
150.0mm x 140.0mm x 86.0mm.
Chassis mount.
Yes, it includes a lead-acid battery charger with constant current 2.5A and constant voltage 29.4V max.
OVP, OCP, shorted, OTP, UVP.
500W.
