| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Protection | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

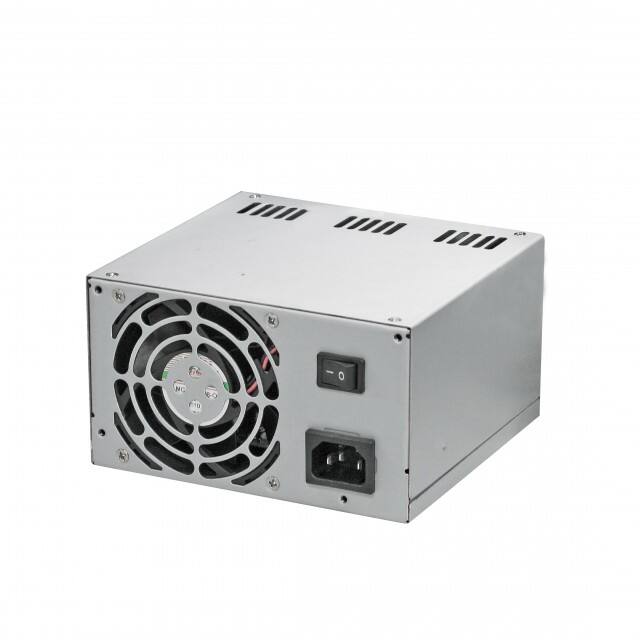

The FSP500-80MPD is a 500W AC/DC power converter manufactured by FSP Technology Inc. Designed for high-efficiency power conversion, it accepts a universal AC input range of 90-264 VAC at 47-63 Hz. The unit delivers multiple regulated DC outputs: +3.3V, +5V, +12V, -12V, -5V, and +5Vsb, making it suitable for systems requiring various voltage rails.
This converter meets 80PLUS Gold efficiency standards, delivering typical efficiencies of 87% at 20% load, 90% at 50% load, and 87% at 100% load. It includes comprehensive protection features such as over-voltage protection (OVP), over-current protection (OCP), and short-circuit protection, with latch-off for +3.3V, +5V, and +12V rails, and auto-recovery for -12V, -5V, and +5Vsb rails. The power factor is 0.9 minimum, and hold-up time is 12 ms minimum at 115VAC.
Operationally, the FSP500-80MPD is rated for 0°C to +50°C ambient temperature with derating: linearly from 100% at +50°C to 50% at +70°C. Storage temperature range is -20°C to +80°C, with 10% to 95% non-condensing relative humidity. This converter is typically used in industrial, server, and telecommunications equipment where reliable multiple-output power is required.
90-264 VAC.
0°C to +50°C.
500W.
80PLUS Gold, with typical efficiencies of 87%, 90%, 87%.
+3.3V, +5V, +12V, -12V, -5V, and +5Vsb.
OVP, OCP, short-circuit protection with latch-off and auto-recovery.
12 ms minimum at 115VAC.
